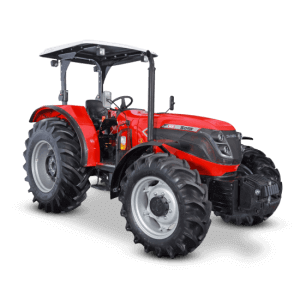

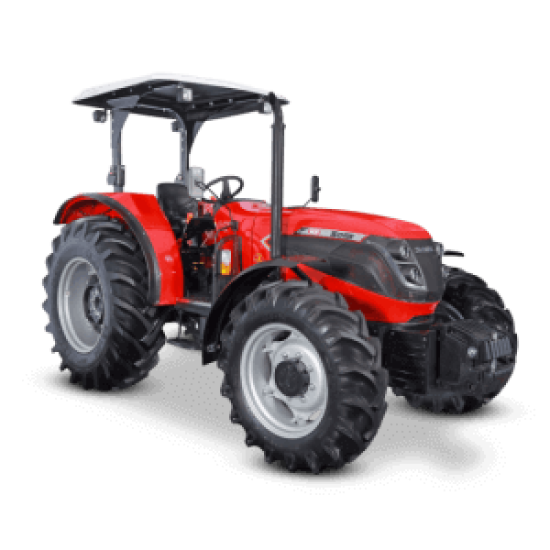

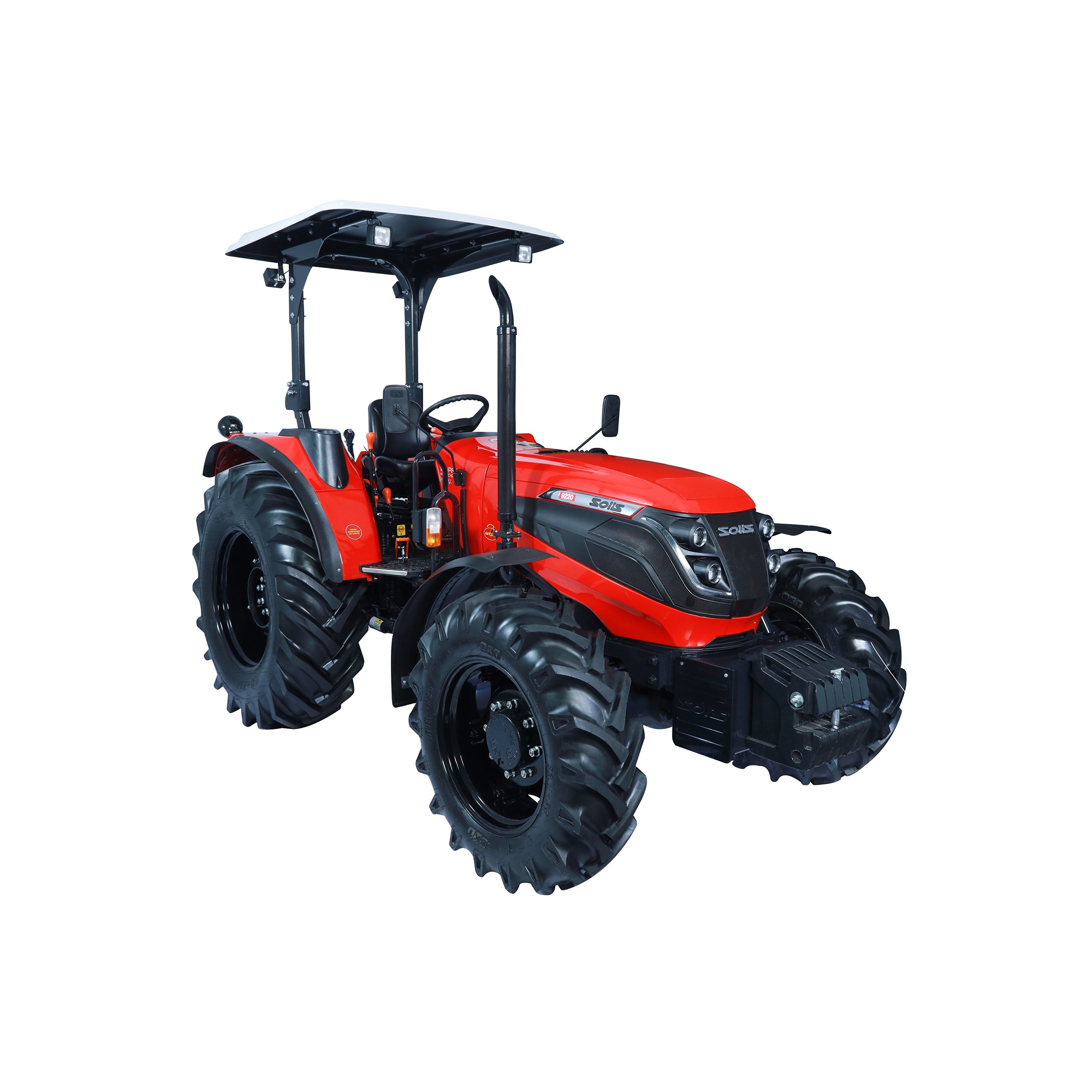

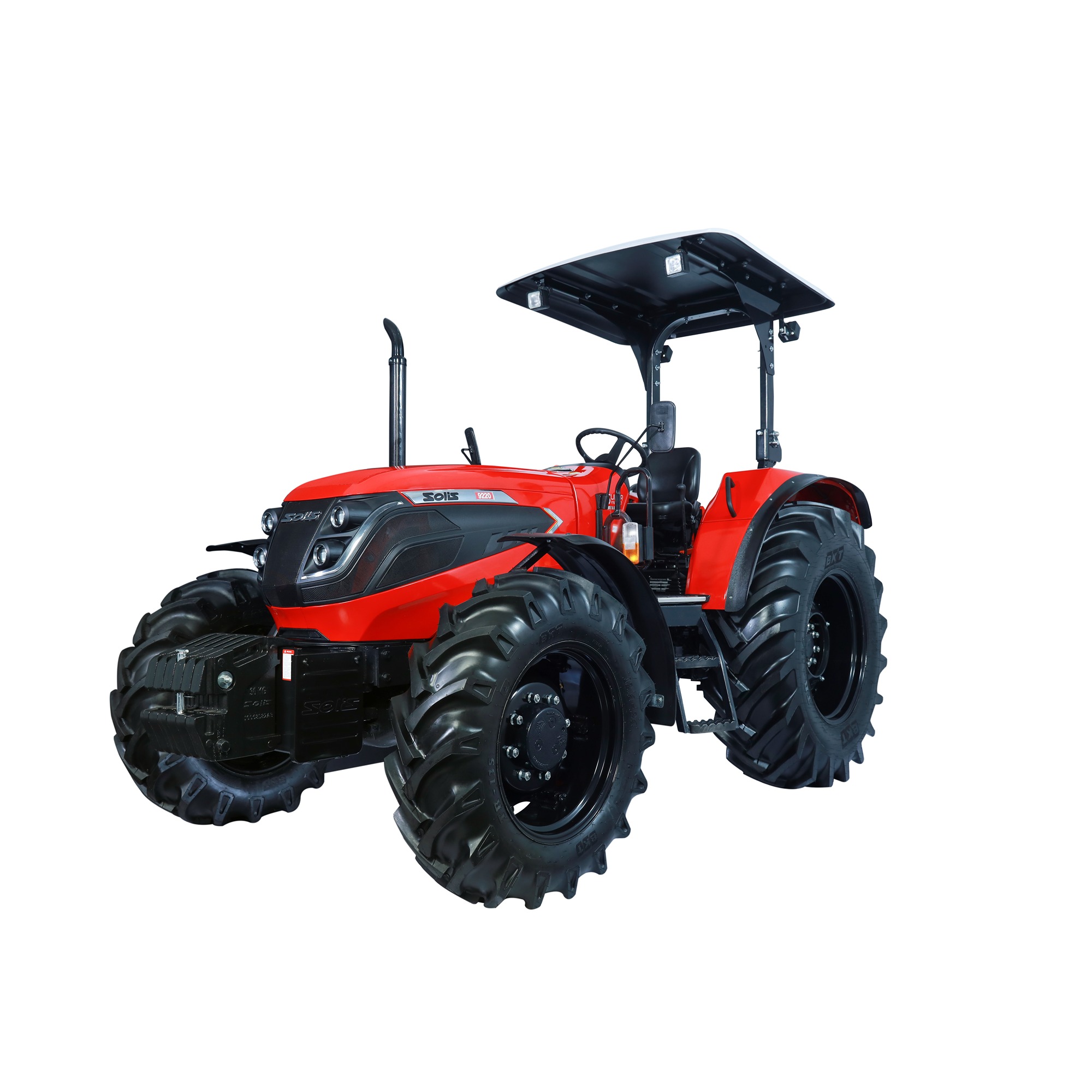

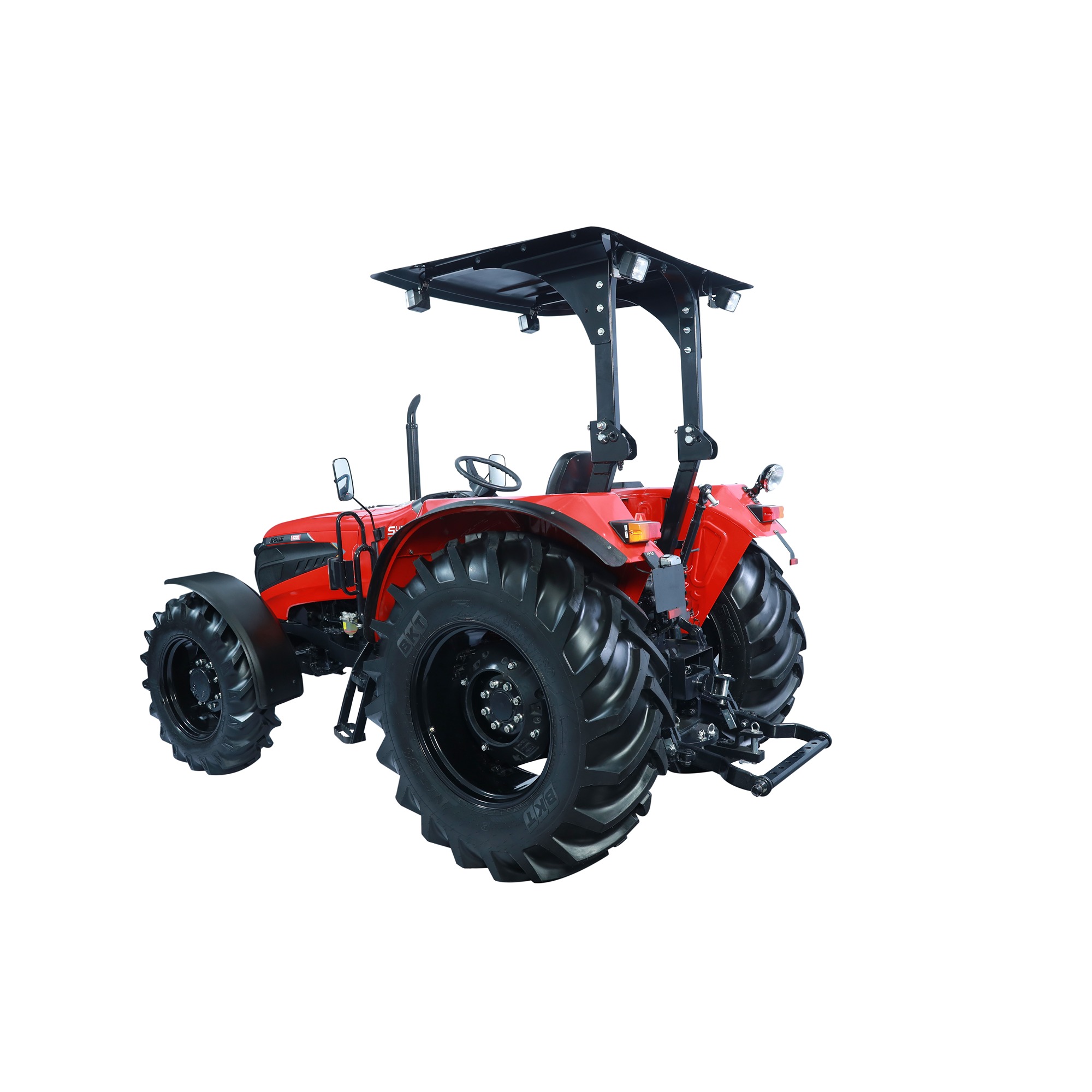

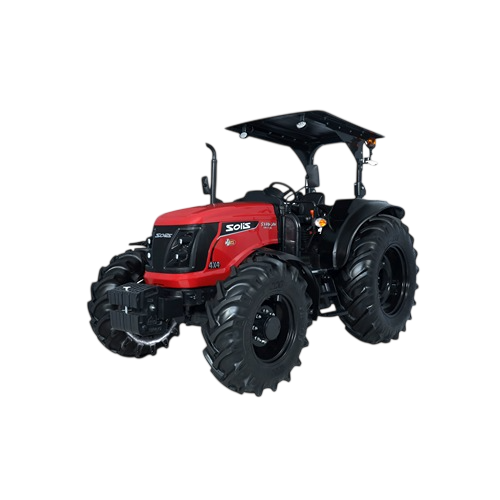

Solis 9220

Solis

9220

Delivering The Power When You Need It The Most

The Power Of Japanese Technology

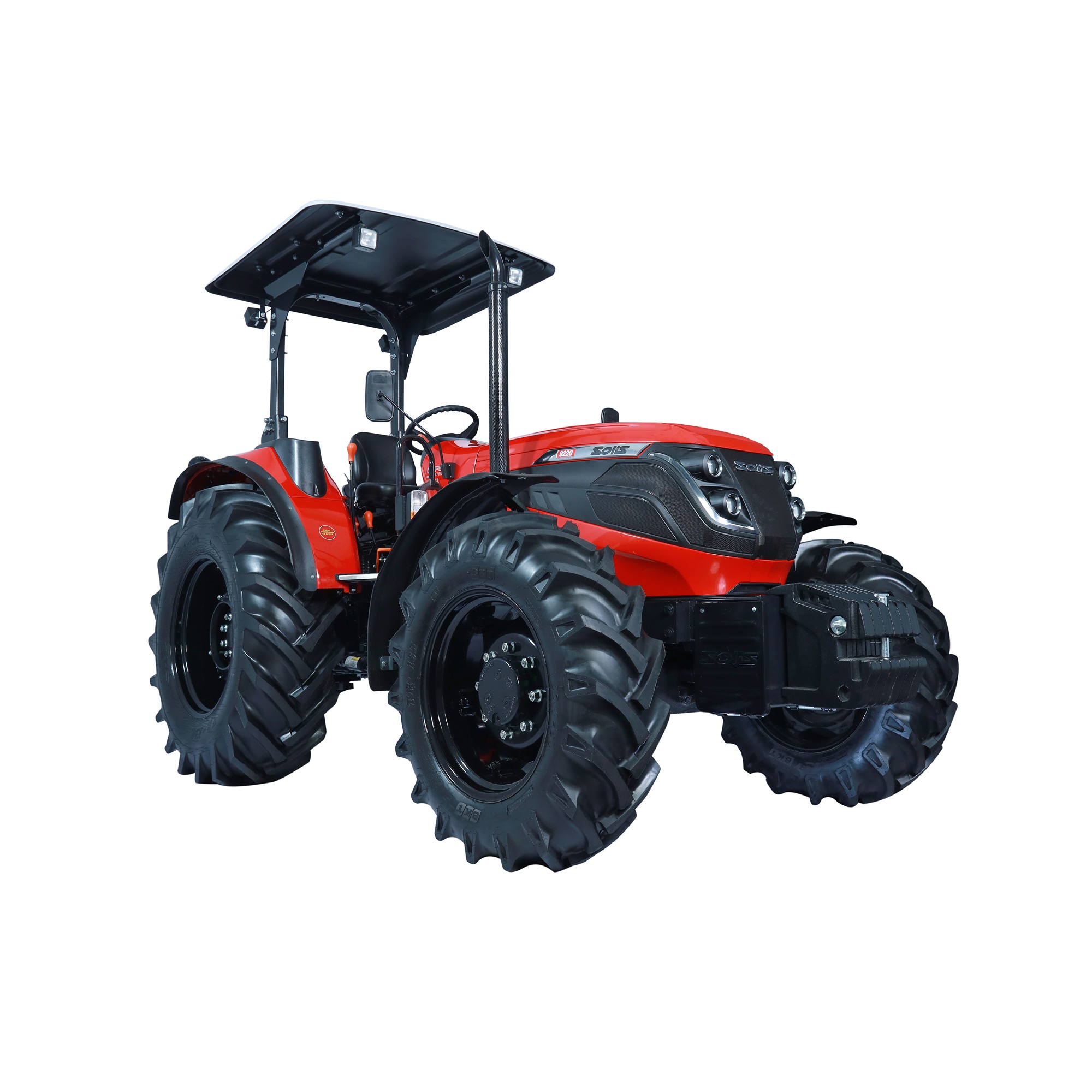

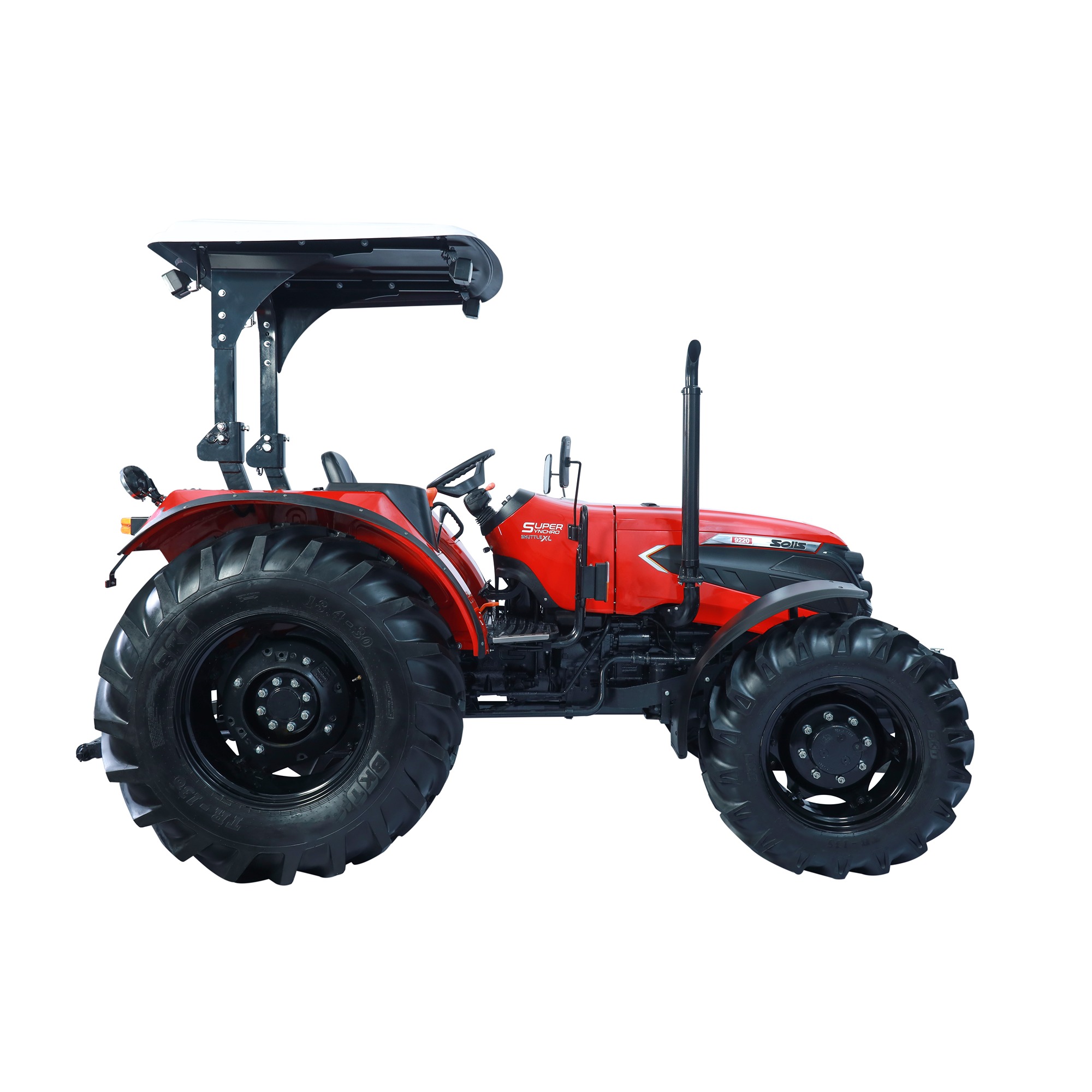

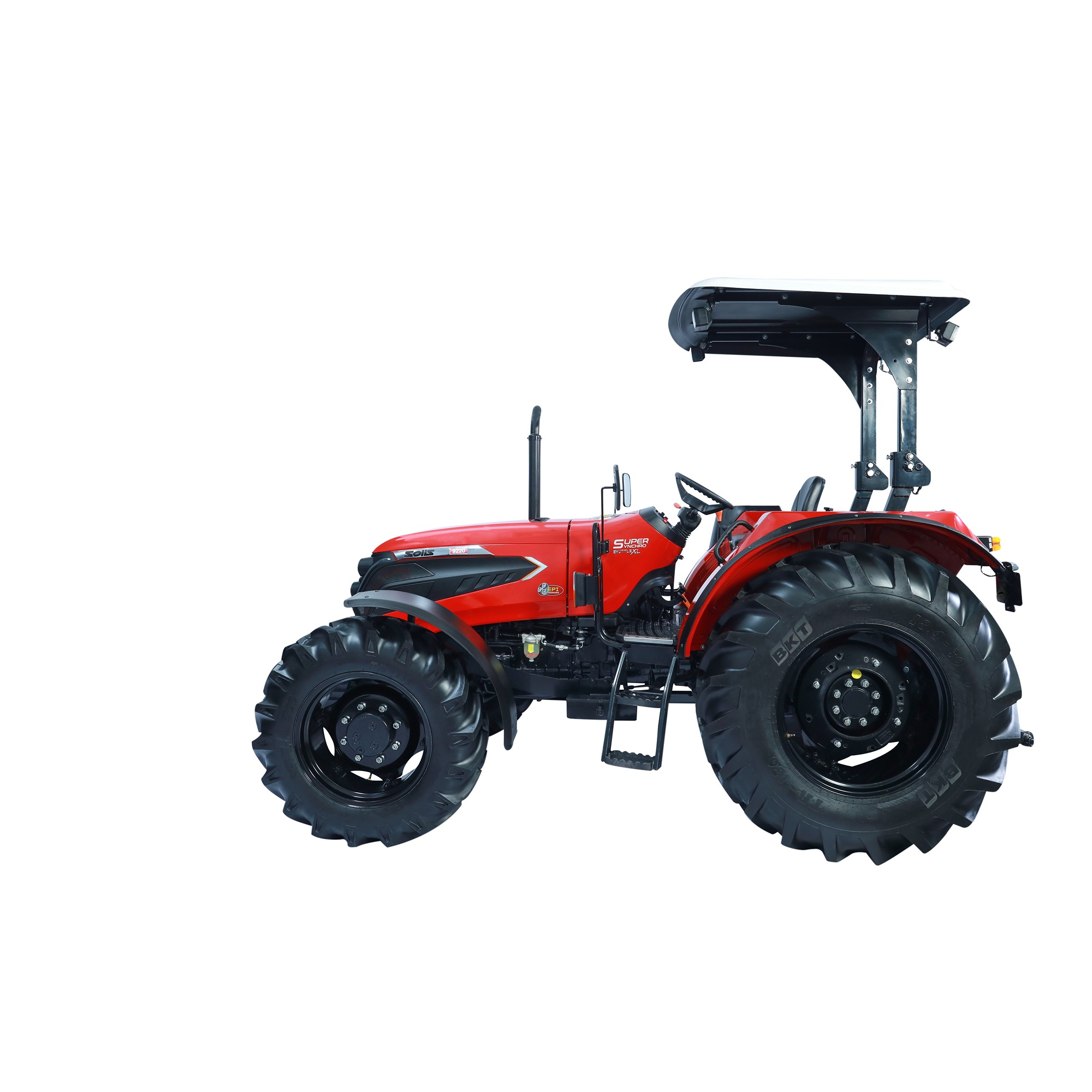

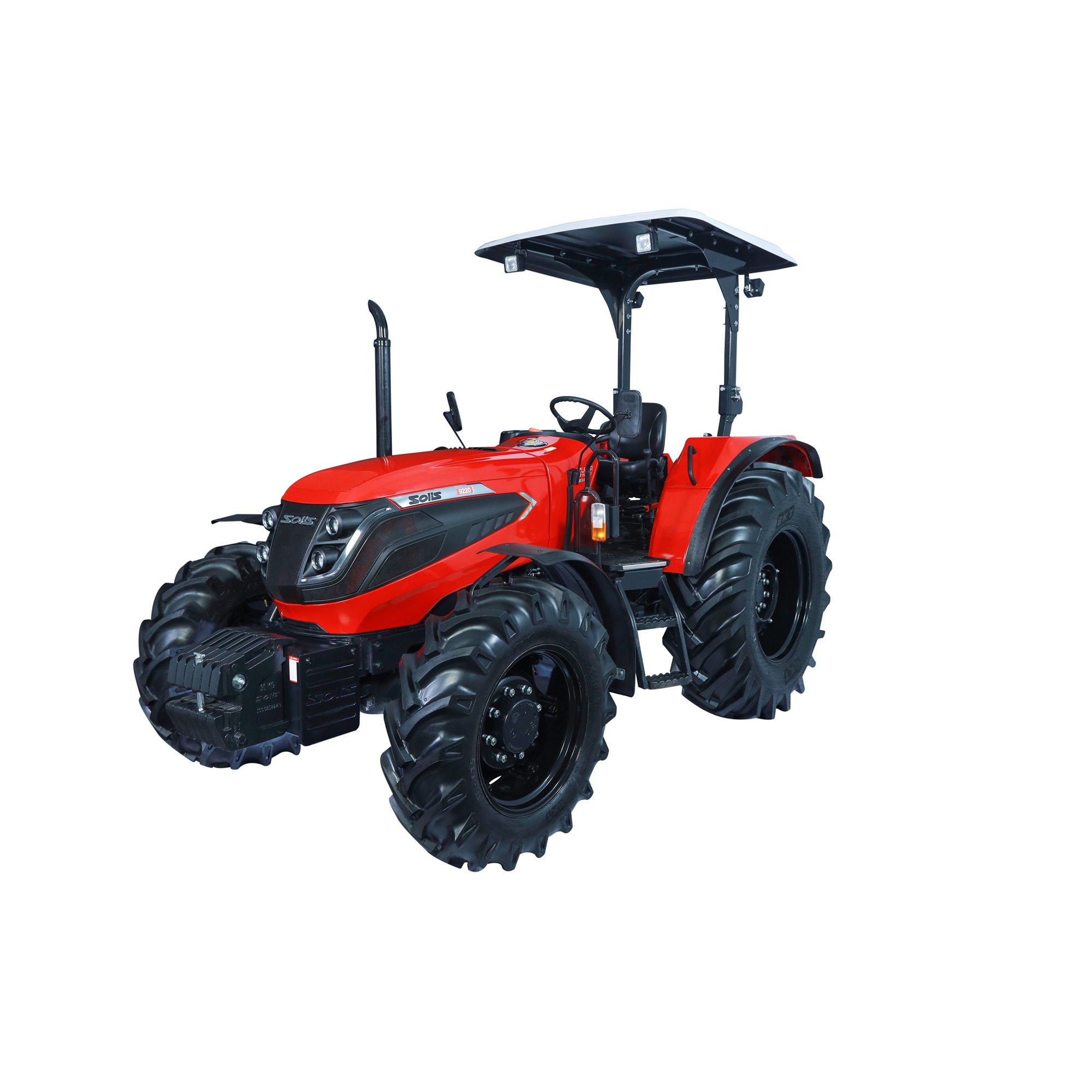

The Solis 9220 is a powerful and reliable tractor that can handle even the most demanding agricultural applications. Its robust engine, spacious cabin, and advanced technology make it the perfect choice for large-scale farming operations.

Solis 9220

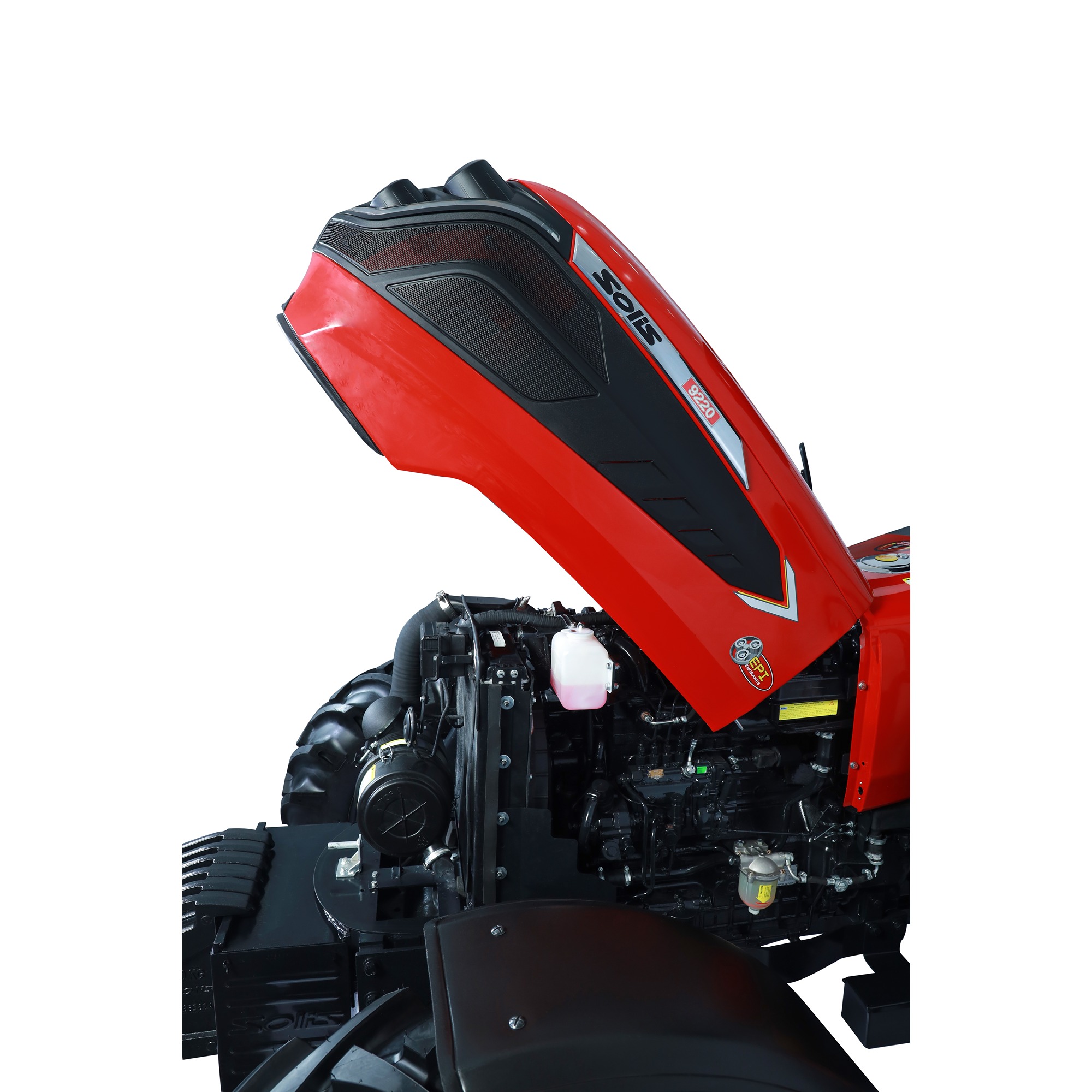

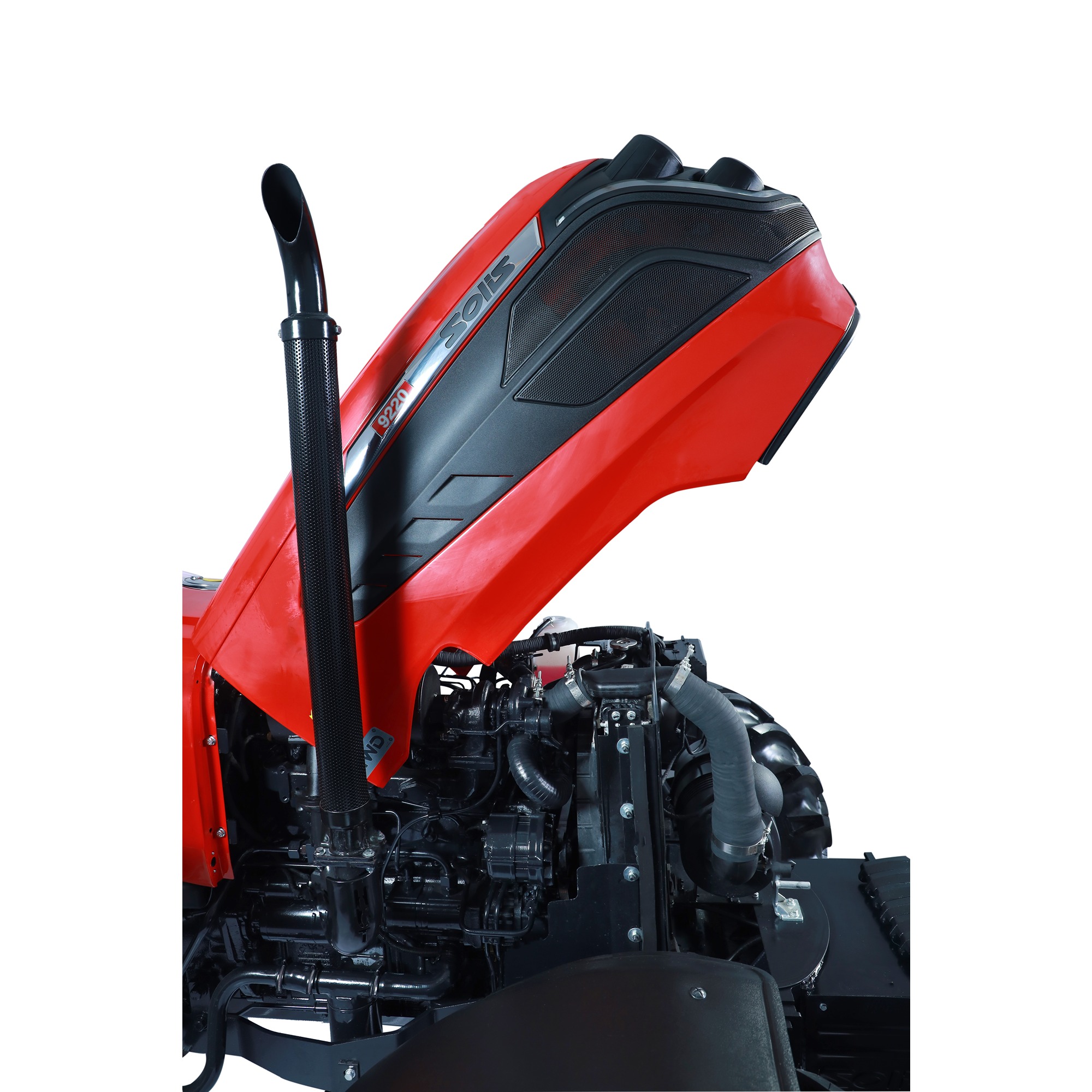

POWERFUL 4 CYL. TURBOCHARGE E3 ENGINE

Solis 9220

12F+12R SYNCHRO SHUTTLE TRANSMISSION

Lift-Capacity-min

POWERFULL LIFTING CAPACITY 3000 kg

Better-Cooling

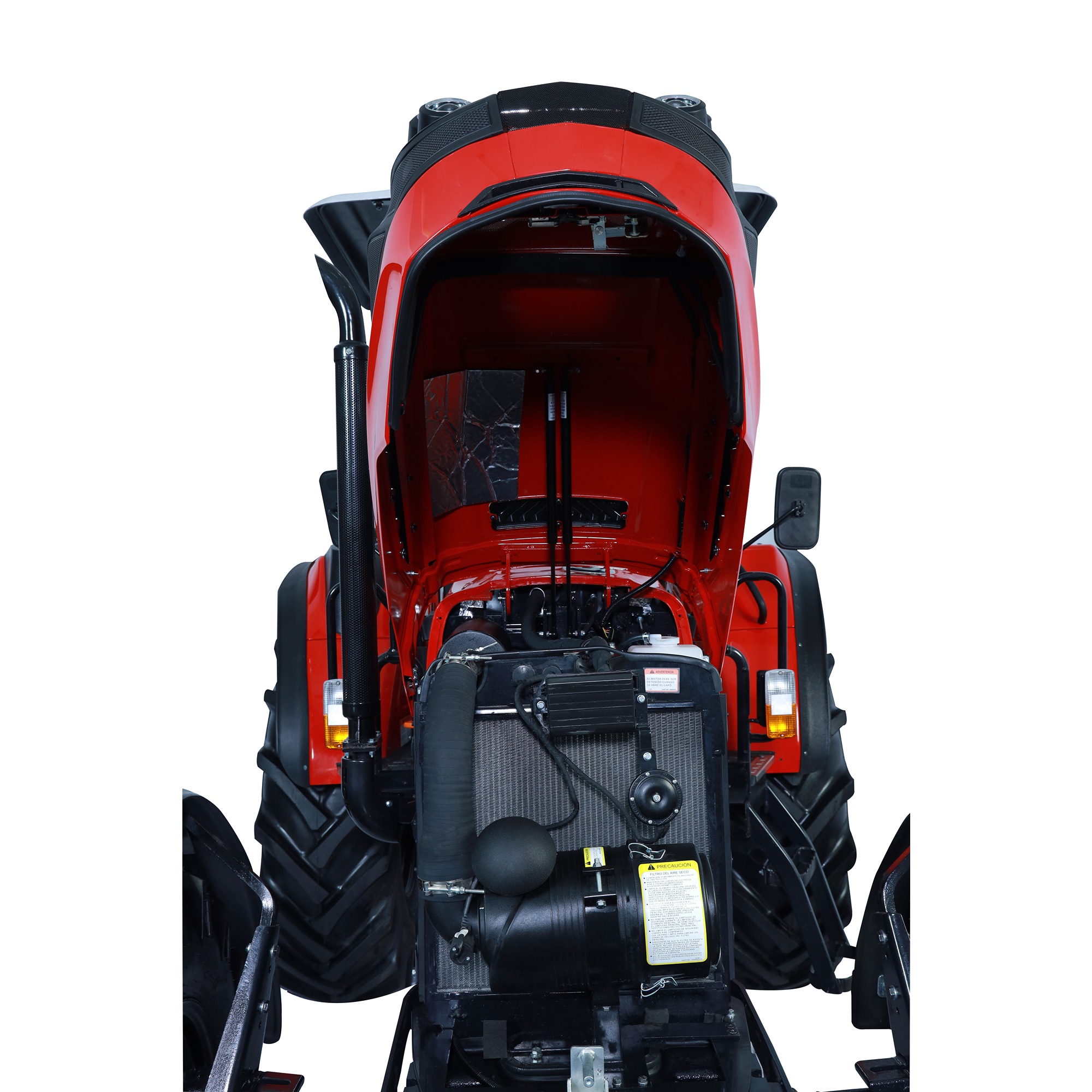

6 Stage Cooling

Technical Specifications

ENGINE
Engine HP (Category) 92
No. of Cylinders 4
Rated RPM 2200
Max. Torque (Nm) 339
Air Cleaner Dry Air Cleaner With Clogging Sensor
Engine Displacement (cc) 4087
TRANSMISSION
Max Speed (kmph) 33.73@2200
Clutch Type Double Clutch
Gearbox 12F+12R(MST)
Transmission Synchromesh
Brake
Brakes Type Multi Disc Oil Immersed Brakes
Hydraulics
Lift Capacity (kg) 3000
3 Point Linkage CAT II

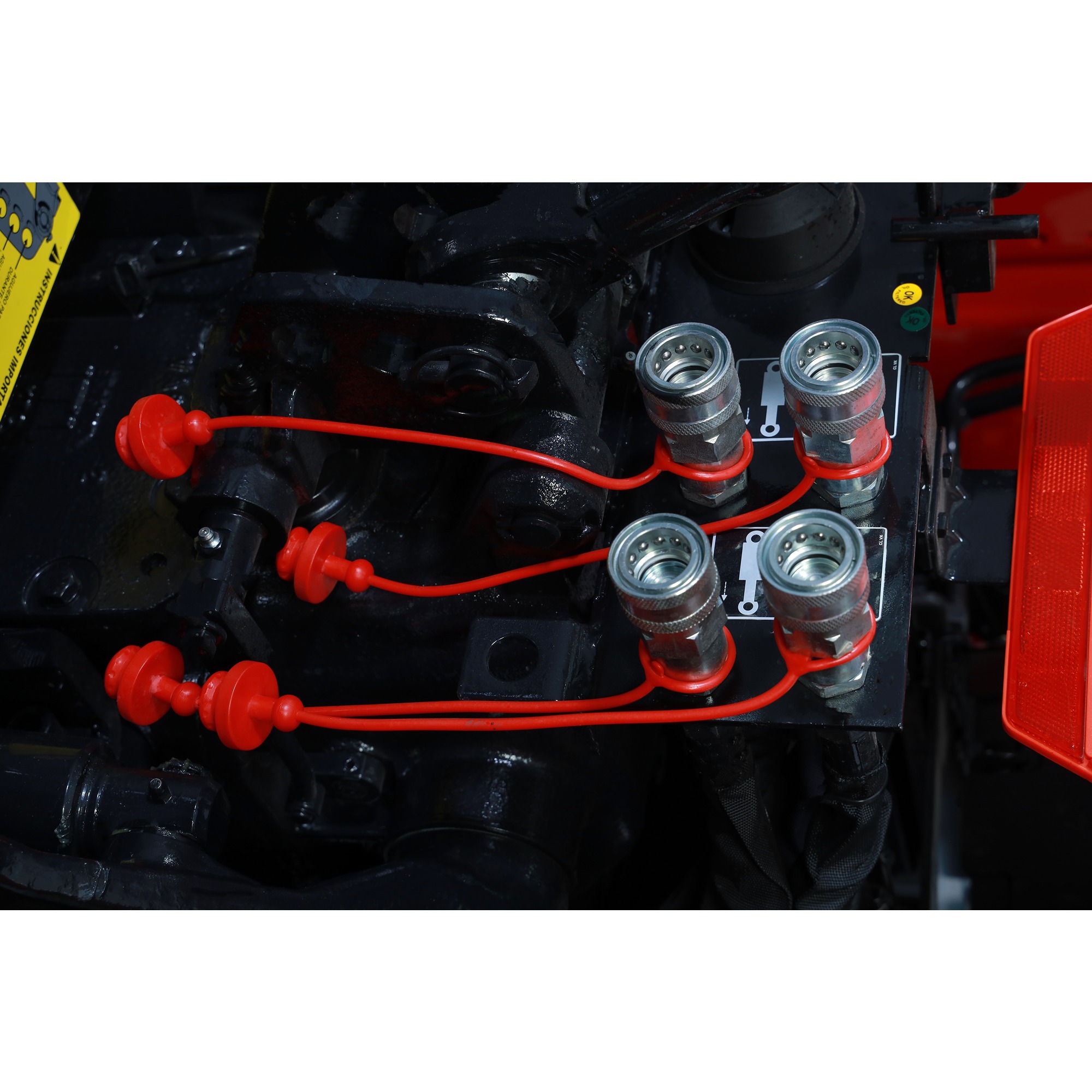

Hydraulic Controll 2DA/2SA
Steering
Steering Hydrostatic
PTO
PTO Standard RPM 540/540E
Tyre 4WD 2WD
Tyre
Front 12.4*24 9.16*24
Rear 18.4*30 18.4*30
Fuel Tank
Capacity (L) 64
Dimensions
Wheelbase (mm) 2340
Overall Length (mm 4270
Overall Width (mm) 1975-2375
Others

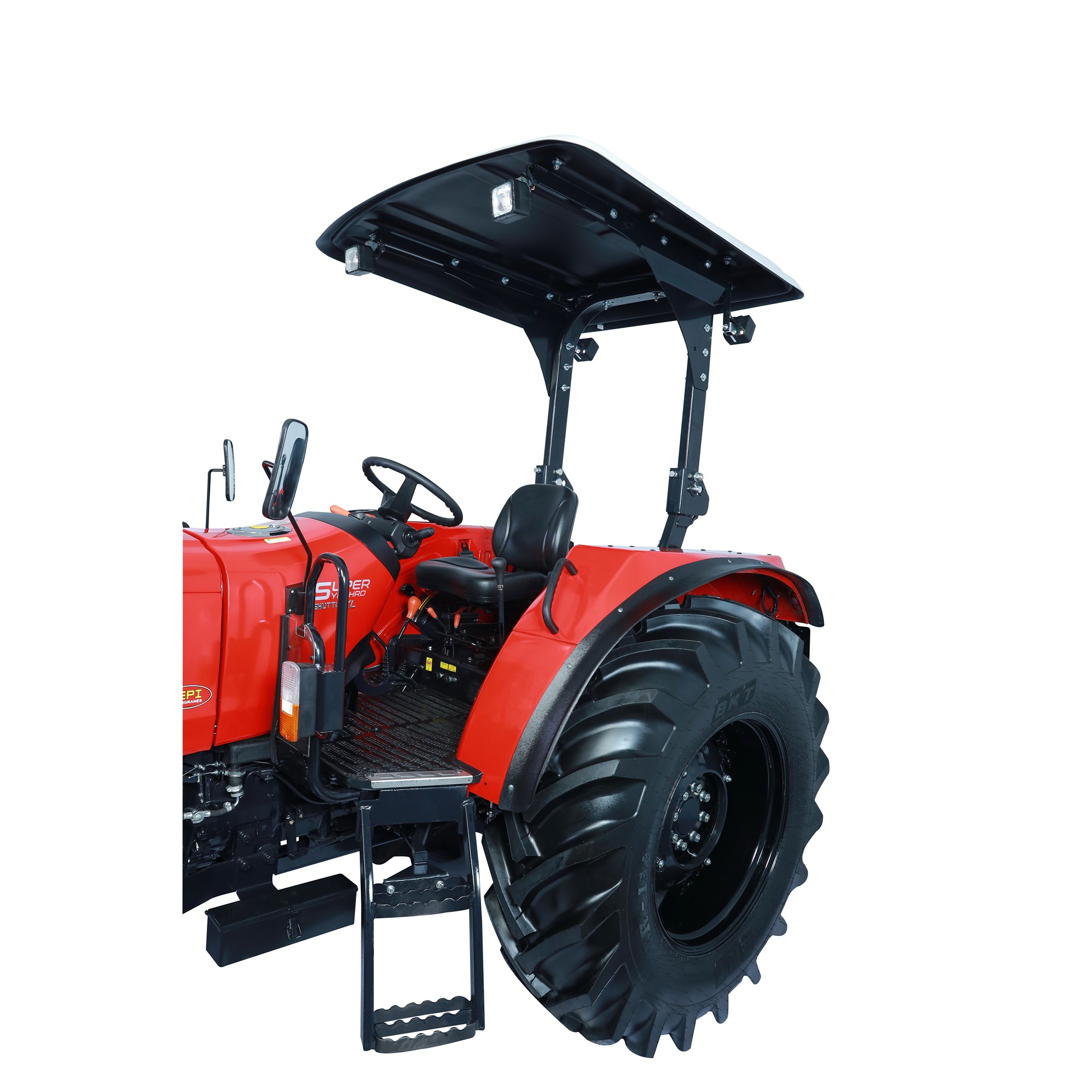

ROPS and Canopy Standard
