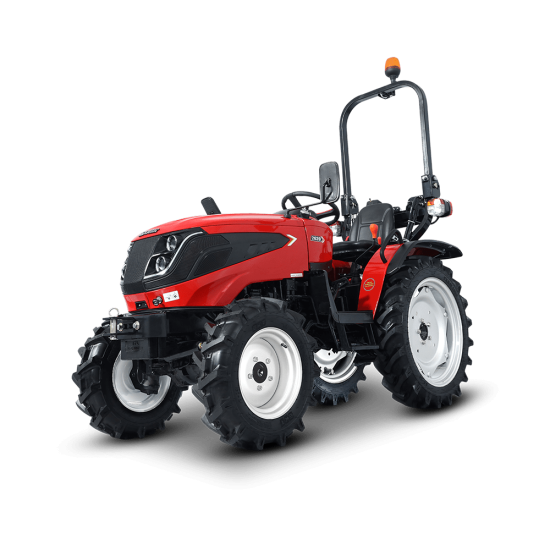

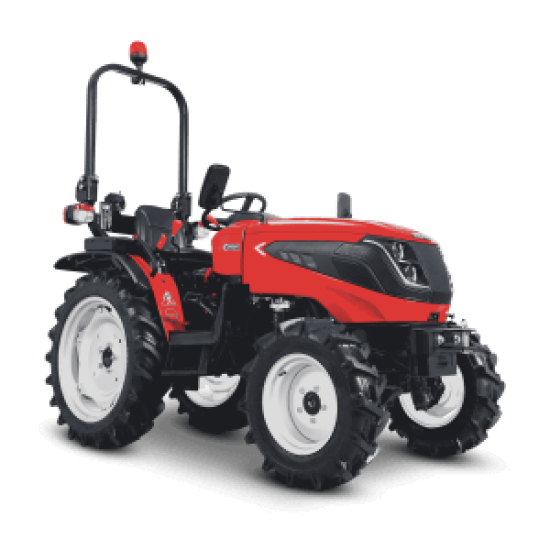

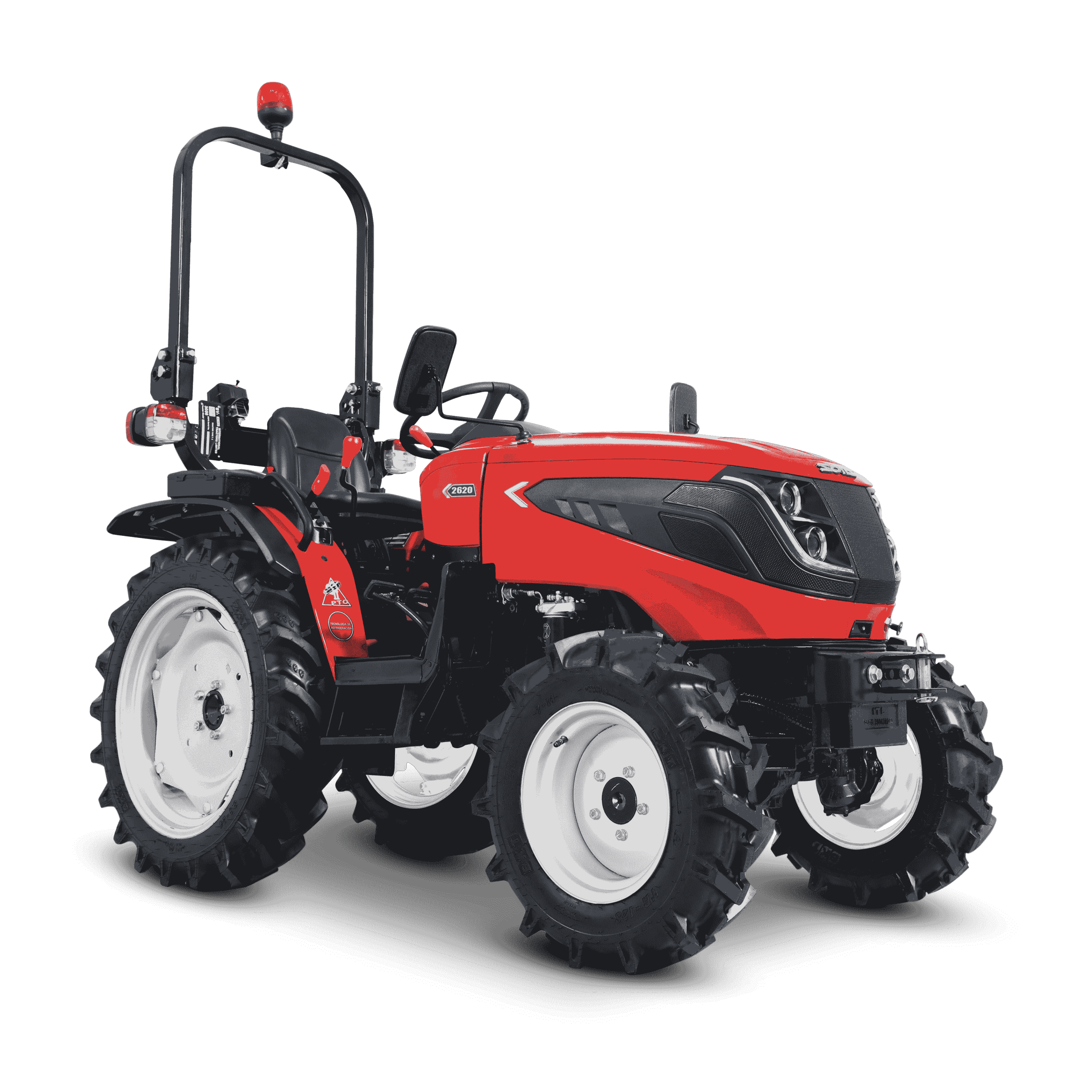

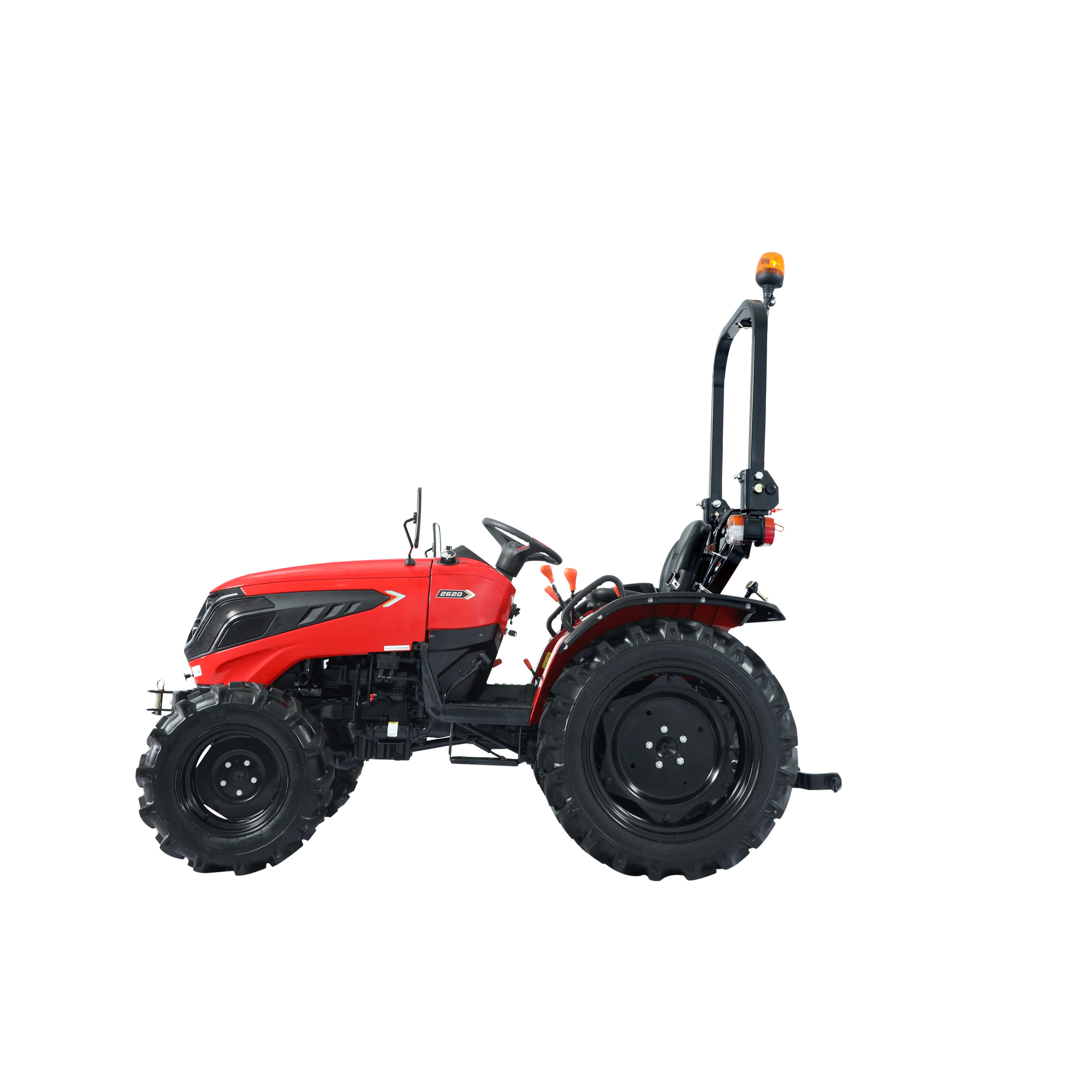

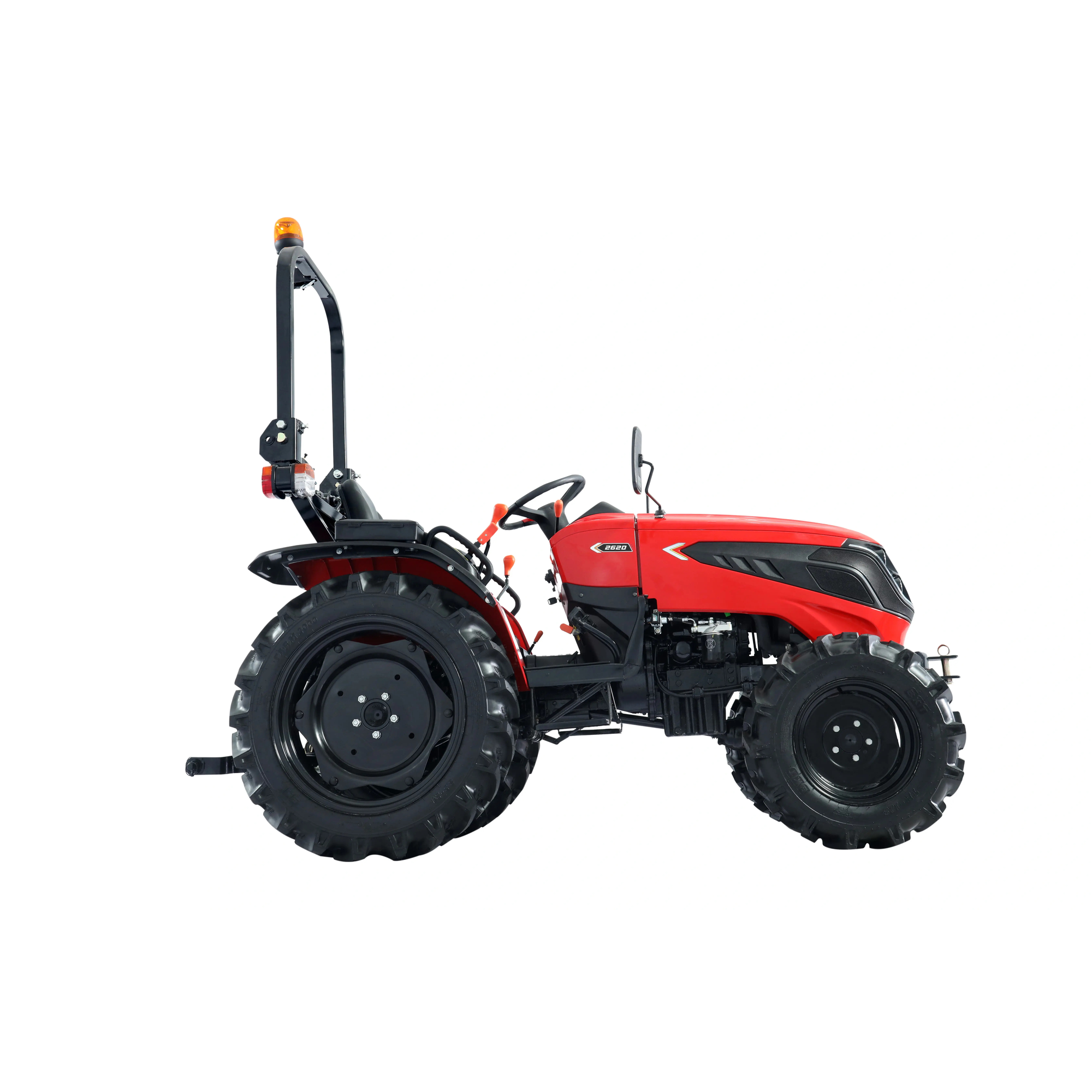

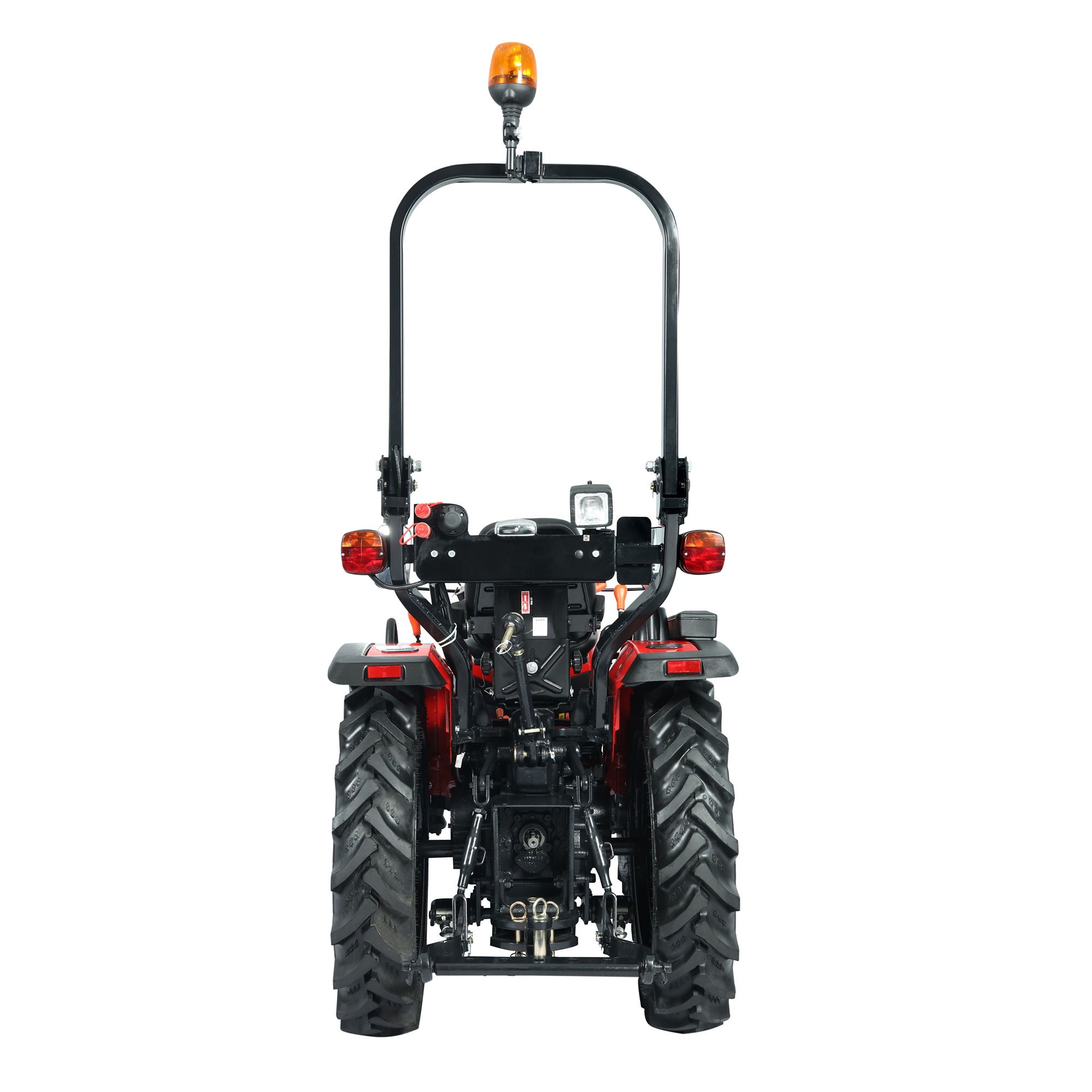

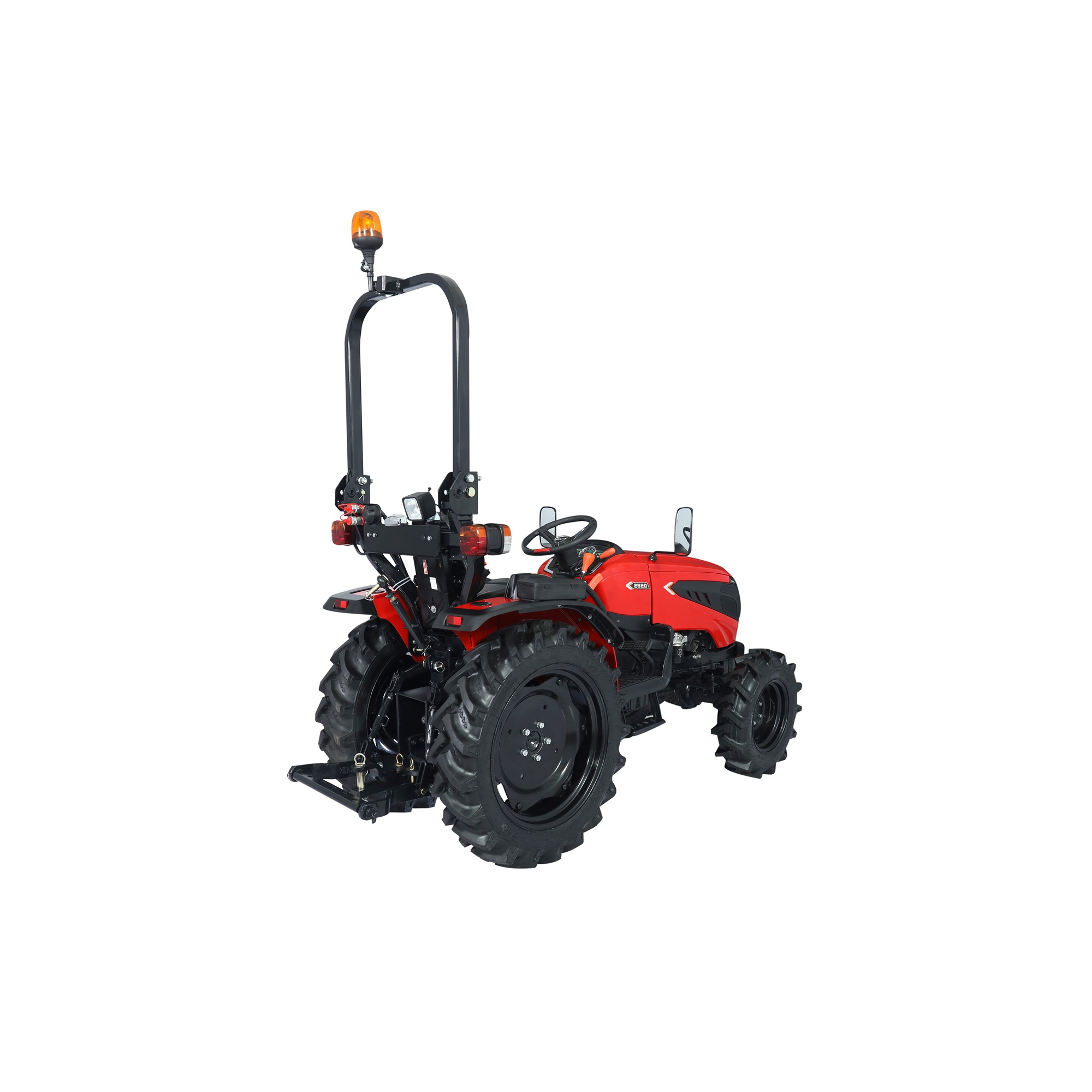

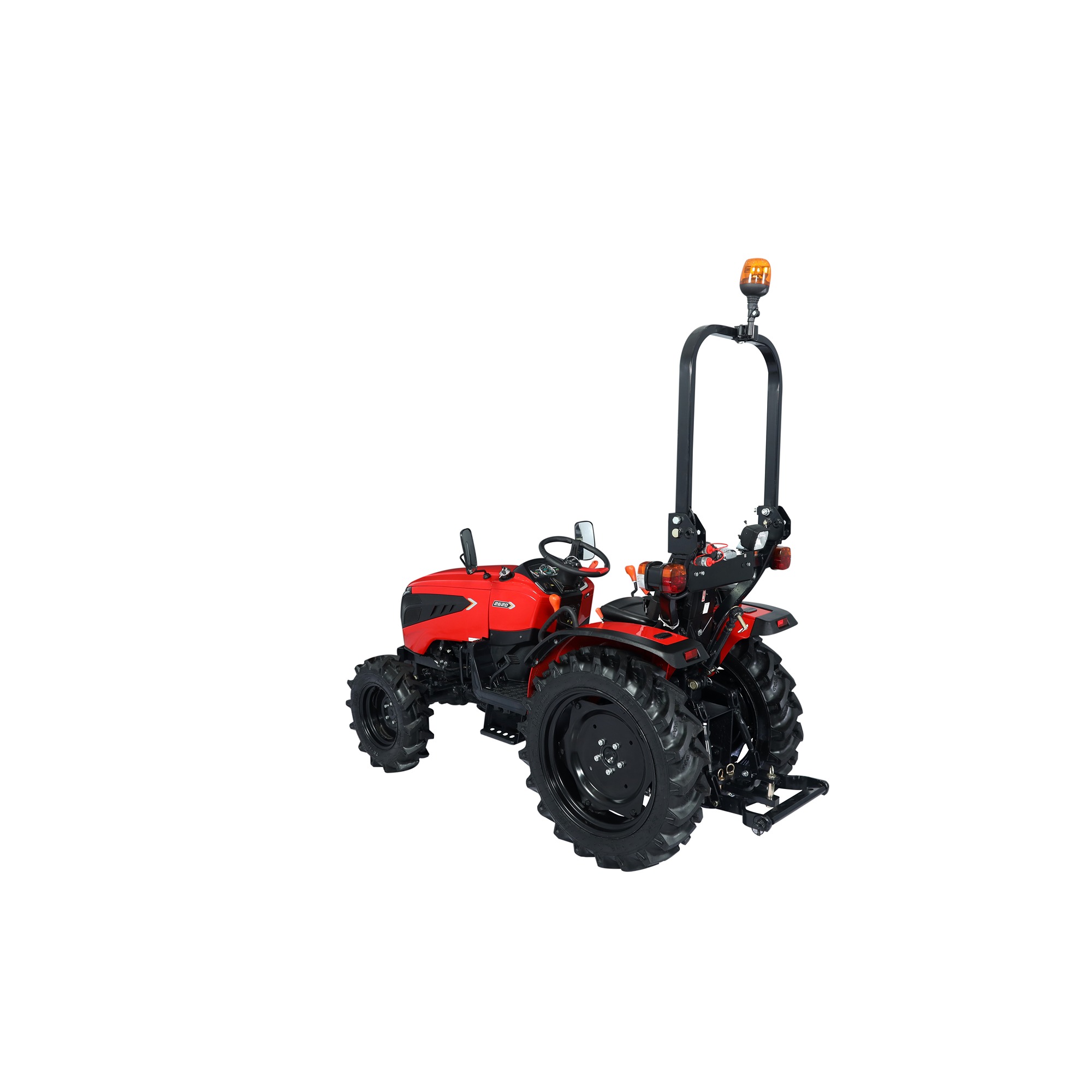

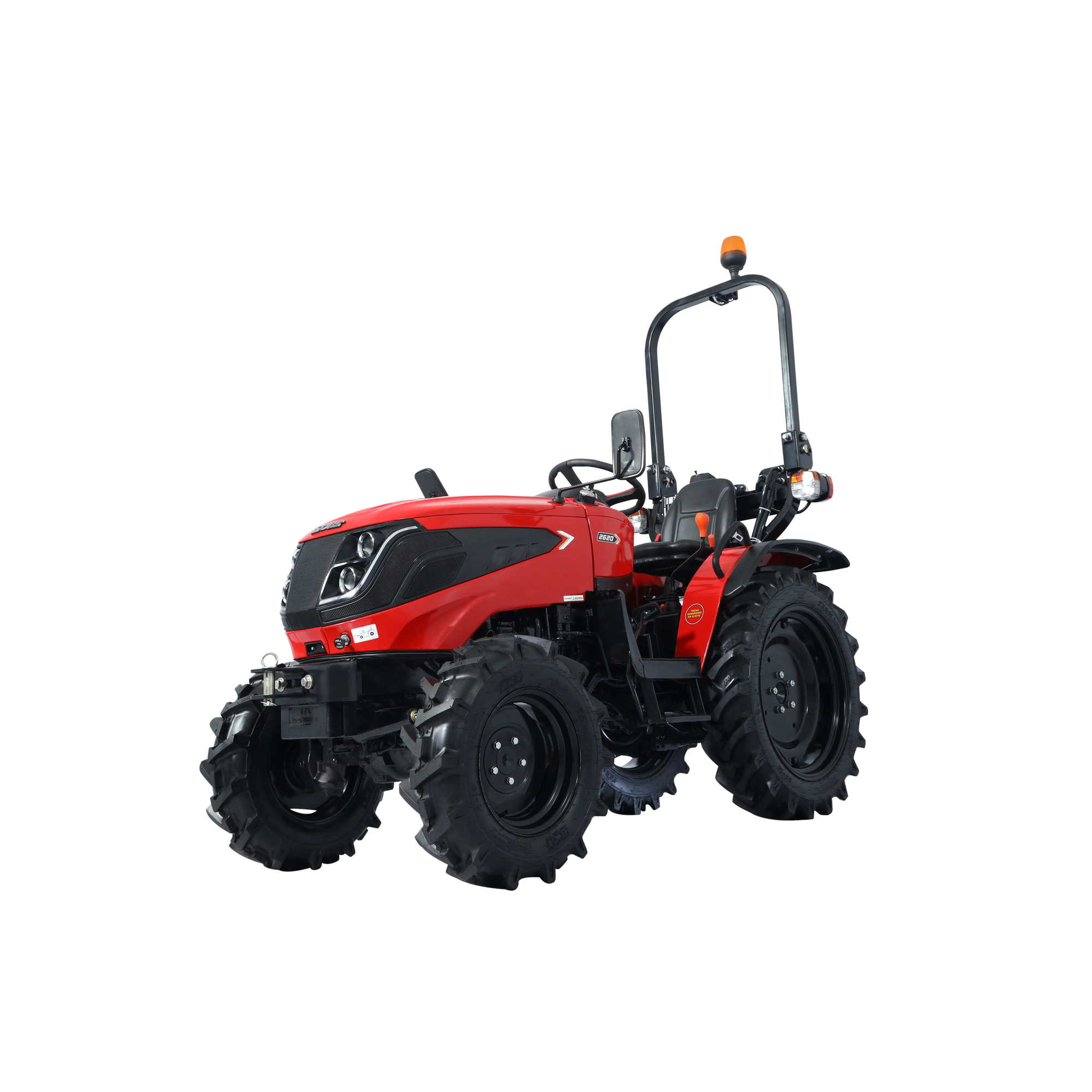

Solis S2620

Solis

S2620

Shift with Ease, Work with Power

The Power Of Japanese Technology

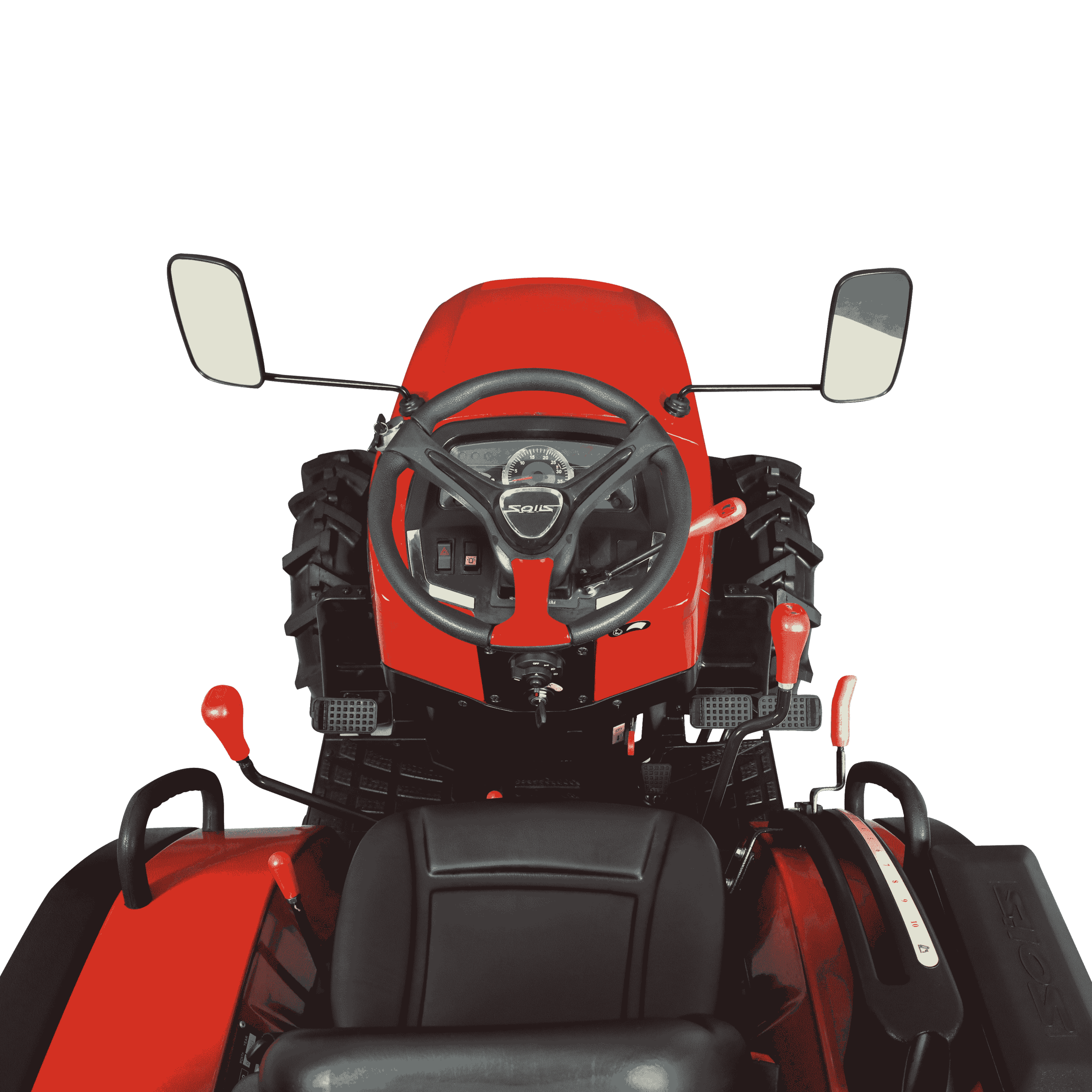

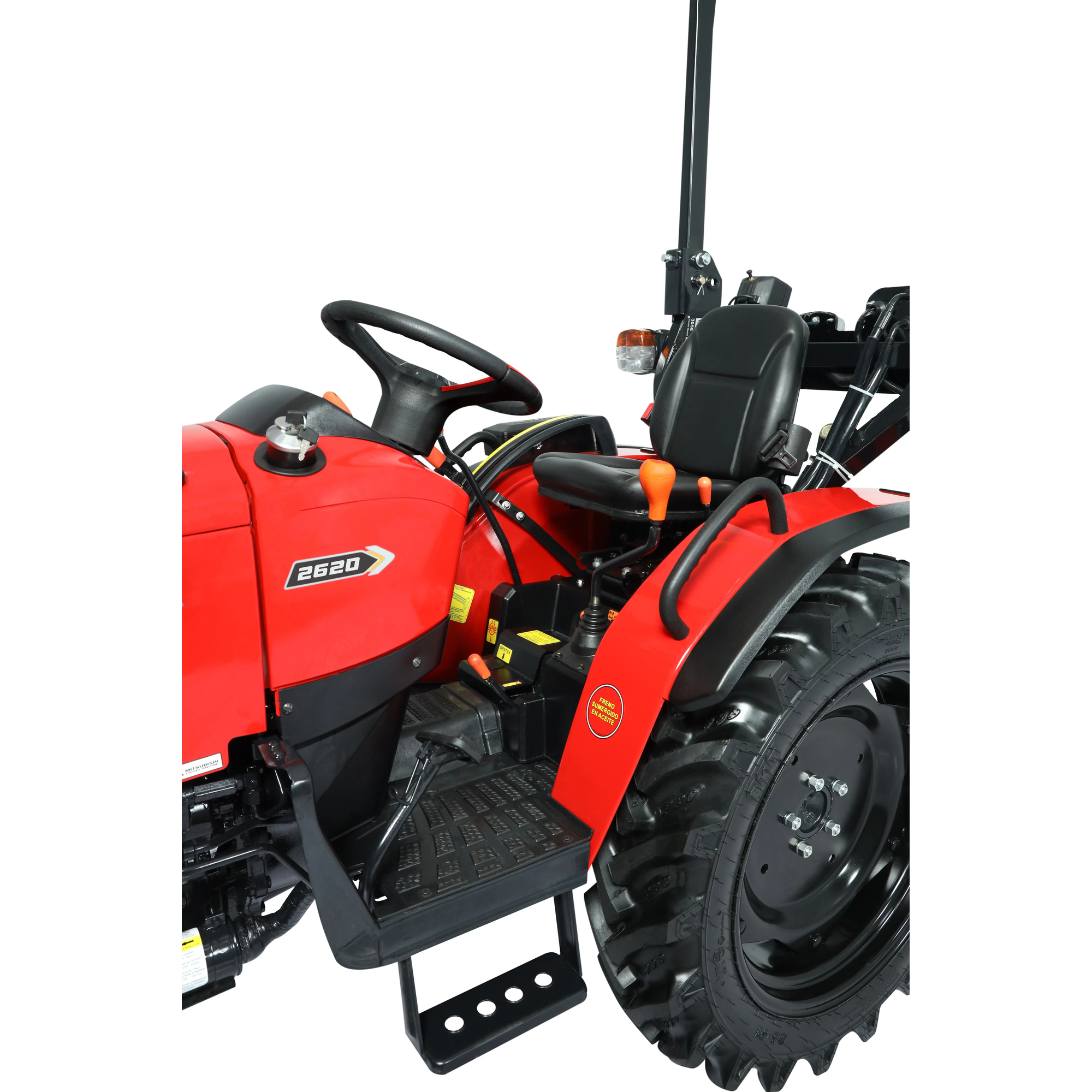

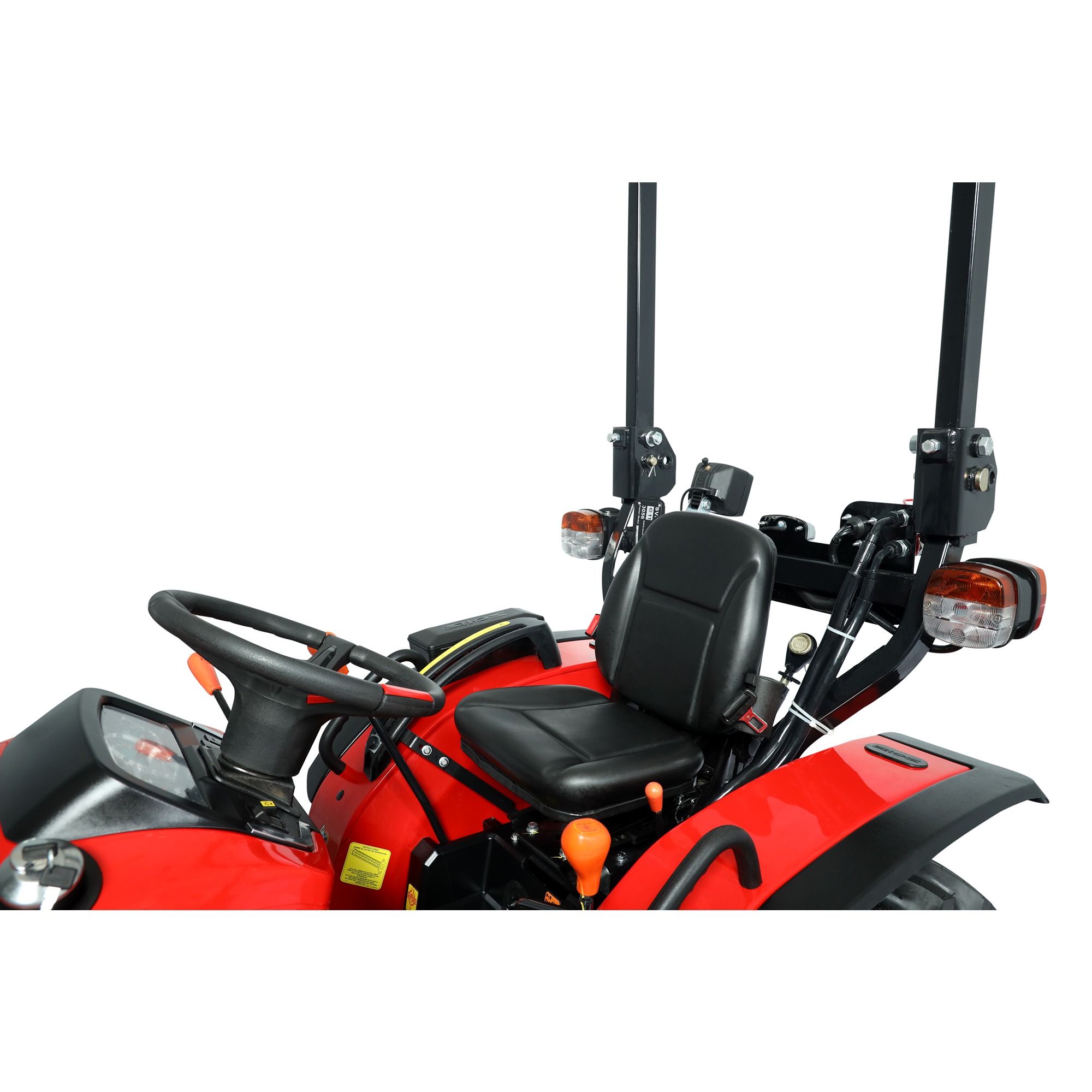

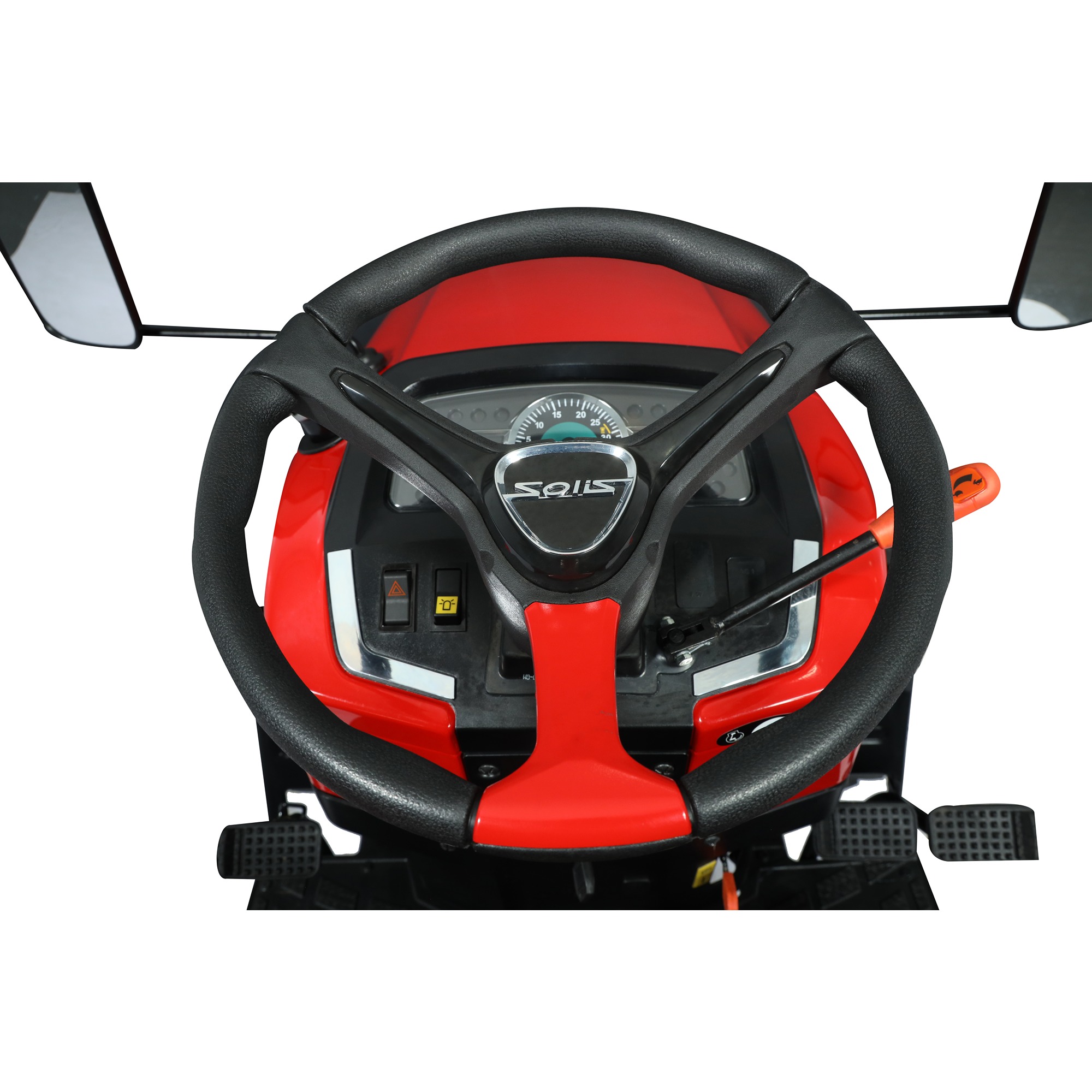

Solis S2620 features a comfortable and spacious cabin that provides a great view of the working area. It comes with a reliable and efficient engine that delivers impressive power and performance, making it the perfect choice for small to medium-sized farms.

Solis 2620

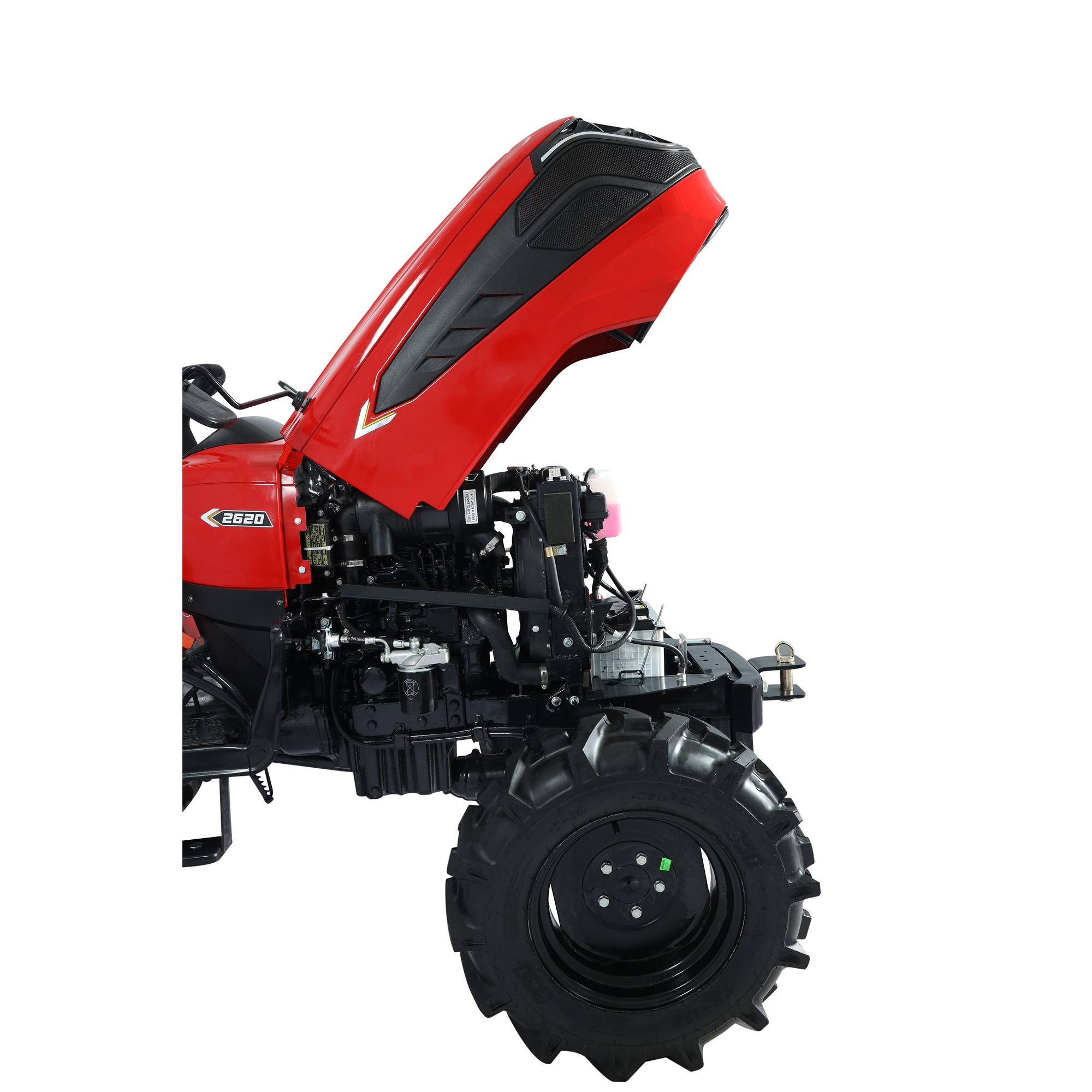

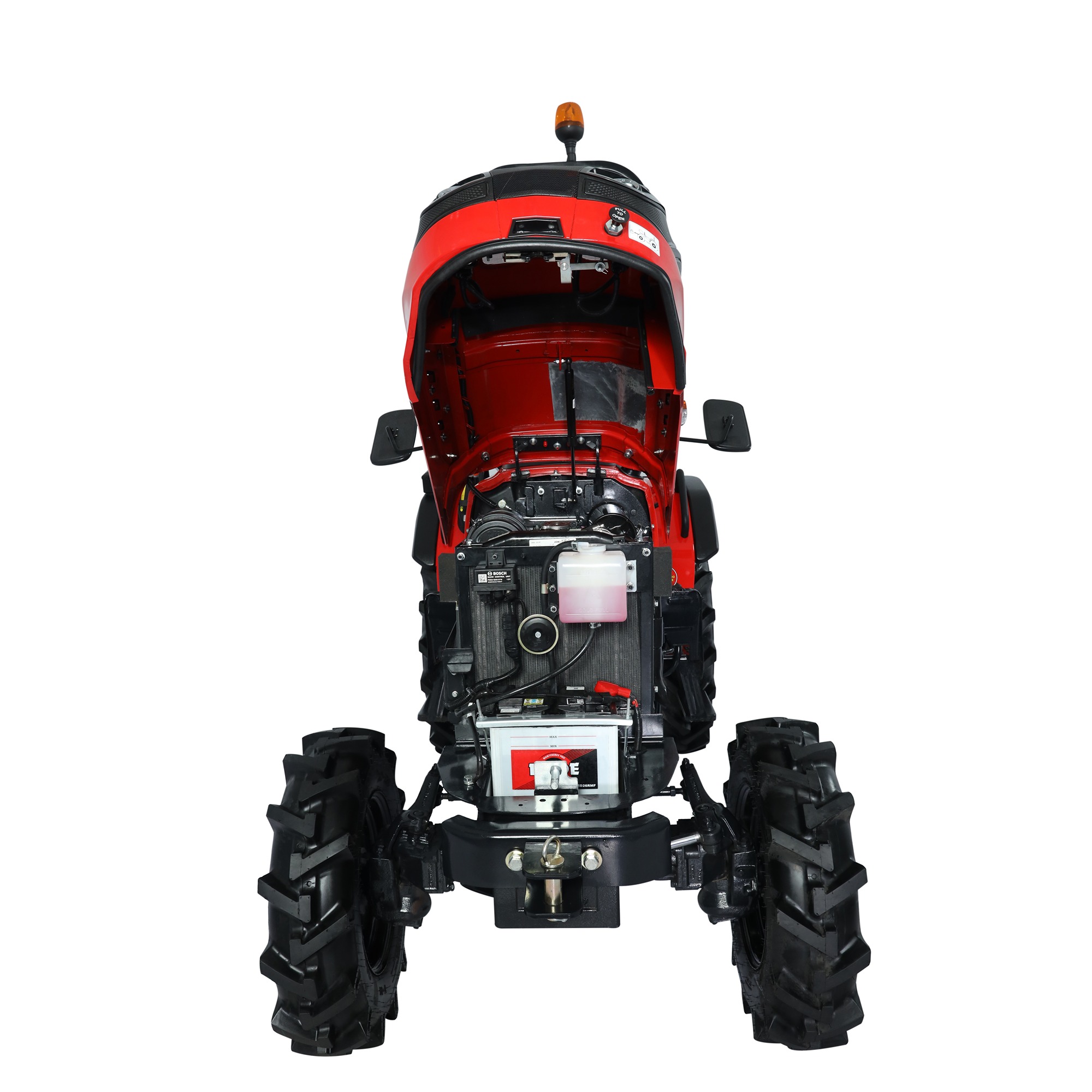

3 CYLINDER MITSUBISHI ENGINE

Solis 2620

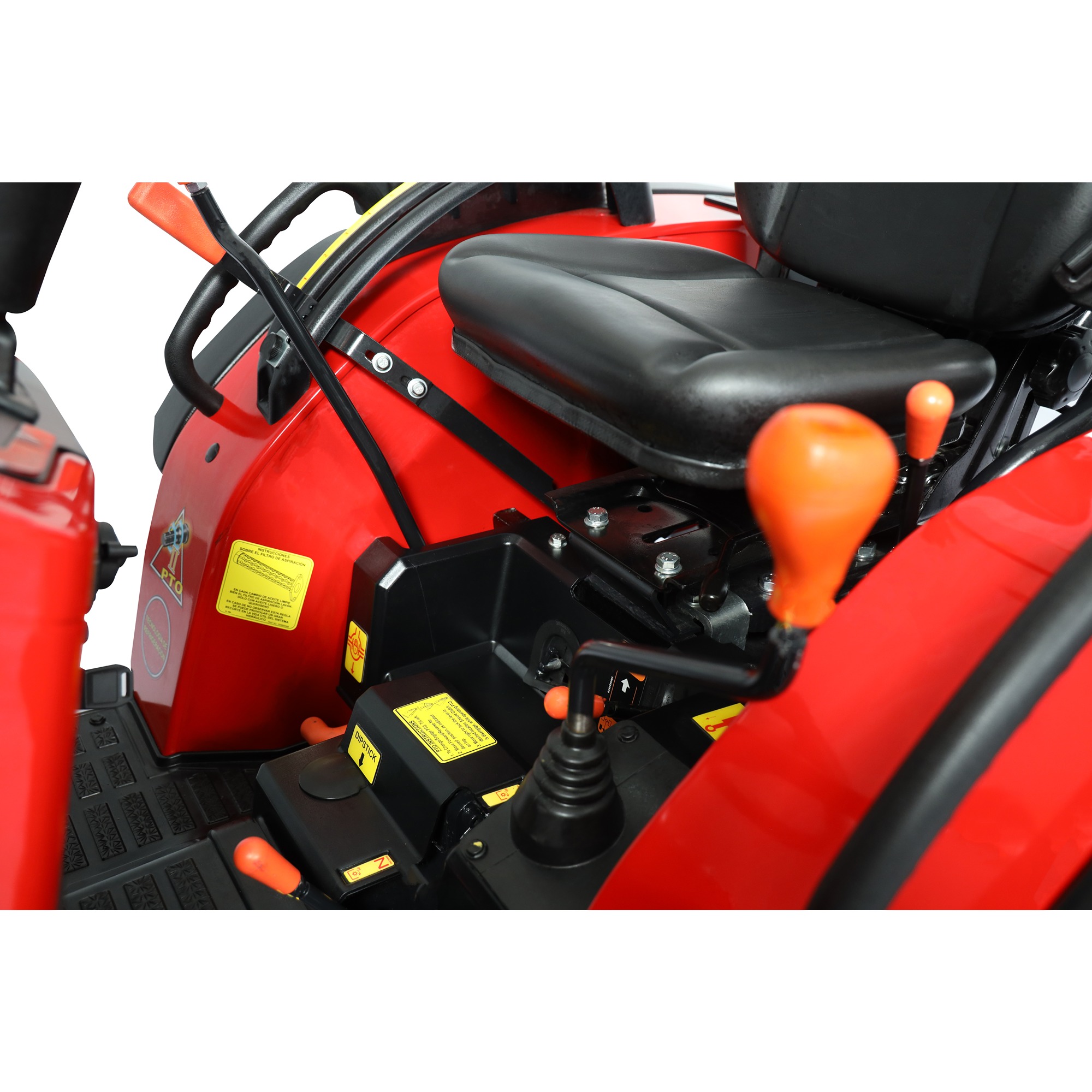

MECHANICAL TRANSMISSION 6F+2R FOR SPEED PERFECTION

Solis 2620

1DA AUXILIARY HYDRAULIC CIRCUIT

Solis 2620

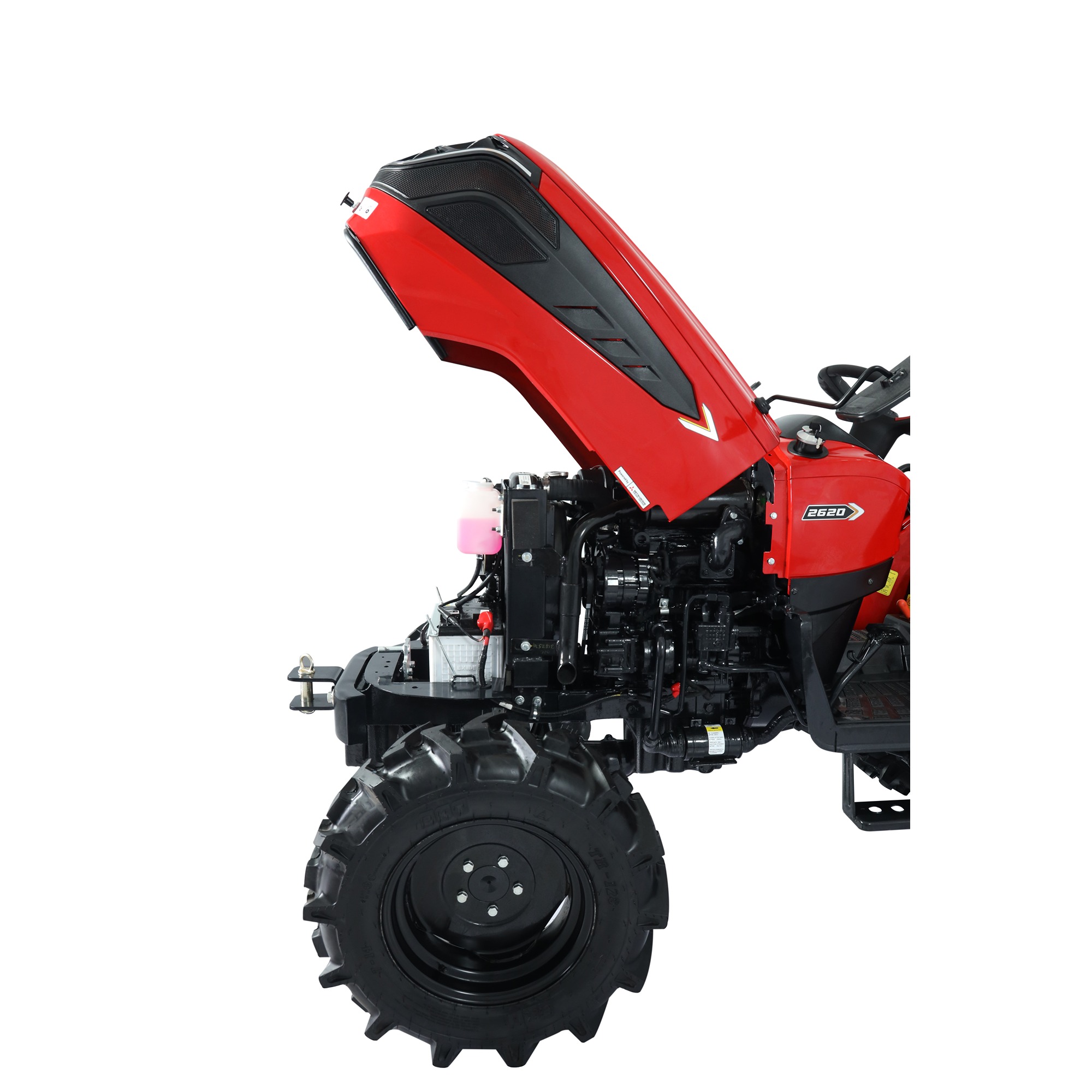

SLEEK & STYLISH BONNET

Technical Specifications

ENGINE
Engine Type MHI Engine
HP Category 26
No. of Cylinders 3
Aspiration Natural
Cubic Capacity (cc) 1318
Rated RPM 2700
Air Cleaner Dry Type with Clogging Sensor
Cold Start Standard
Max Torque (Nm) 76.3 Nm
Exhaust Downdraft Exhaust
Muffler Under-hood
TRANSMISSION
Drive 4WD
Clutch Single Clutch
Gearbox 6F+2R
Front Axle 4WD
Transmission Sliding Mesh
SPEED (FORWARD)
Maximum Speed (Km/Hr) 15.58 @ 2700 erpm
Minimum Speed (Km/Hr) 1.67 @ 2700 erpm
Speeds may vary with other tyres
BRAKES
Brakes Oil Immersed Brakes
Type of Actuation Mechanical
Parking Brake Independent
DIFFERENTIAL LOCK

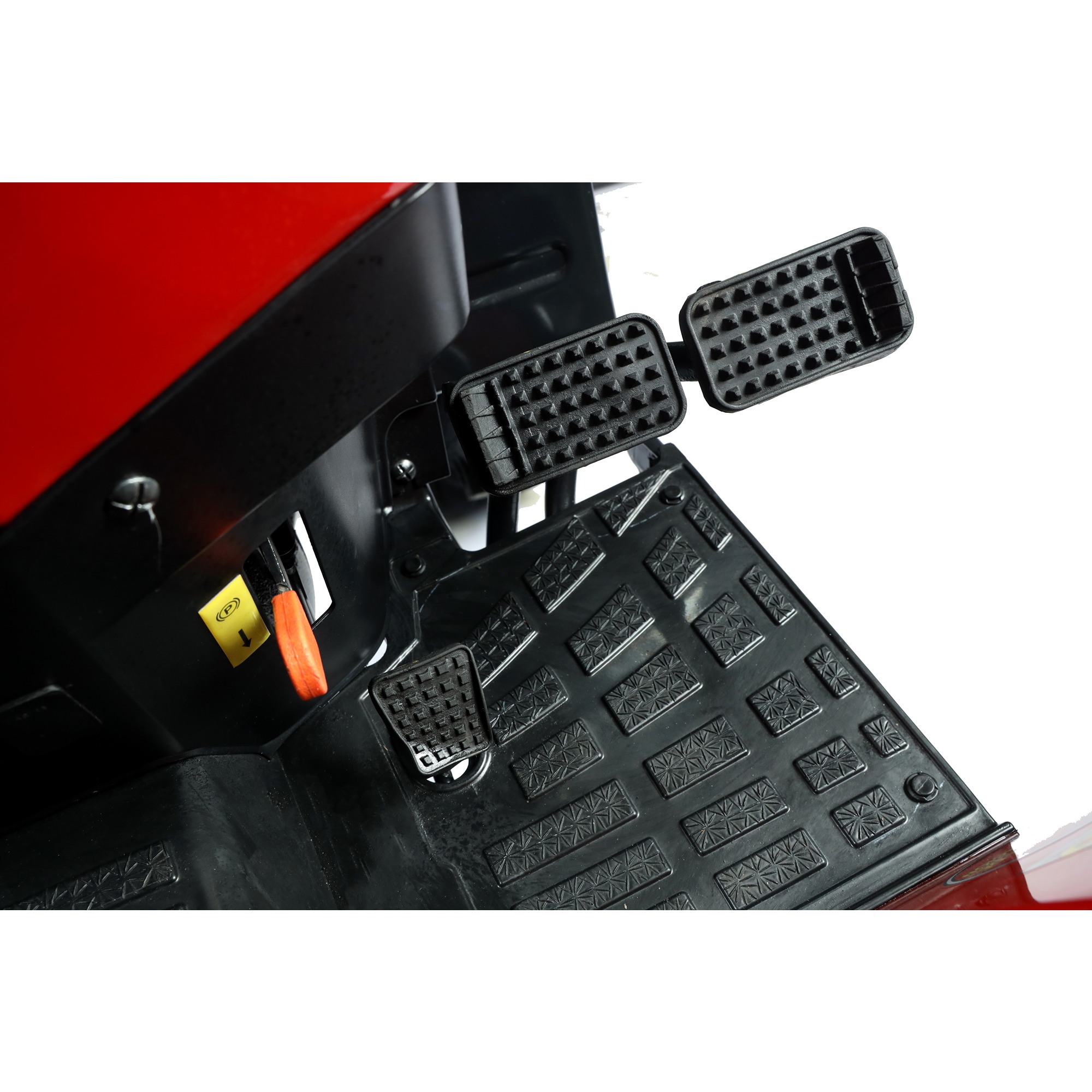

Differential Lock Mechanical, Foot Operated
PTO
PTO (RPM) 540/1000
PTO (Actuation) Mechanical
STEERING
Steering Power
ELECTRICAL
Battery 12V, 65Ah
Alternator 12V, 42Amp
Seven Pin Trailer Socket Output 12V
HYDRAULICS

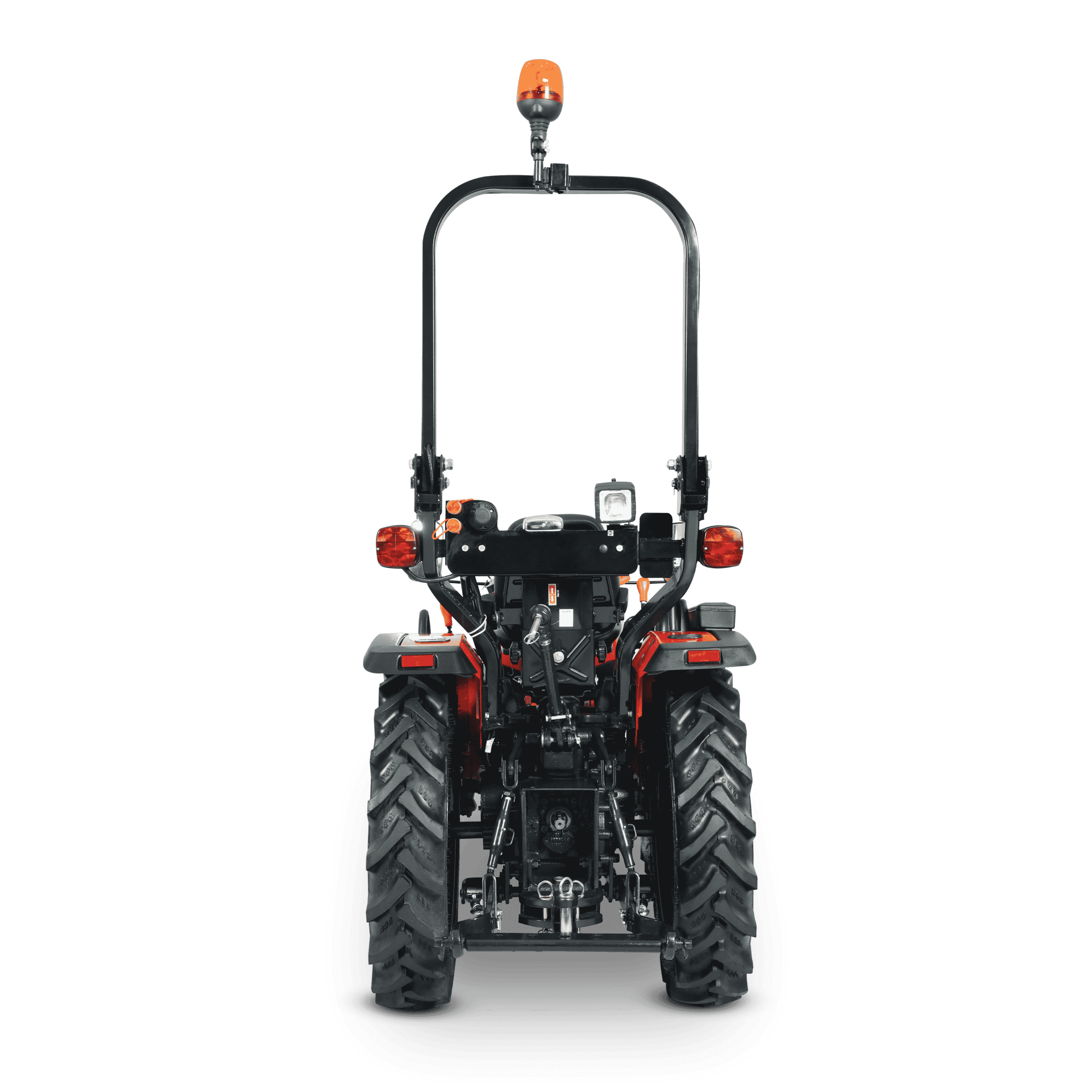

3 Point Linkage Cat 1-N
Stay Bars Anchor Chain
Hydraulic Lifting Capacity 6000kg
Auxiliary Hydraulic Circuit 1DA
SAFETY SWITCH
Clutch Safety Switch Standard
PTO Safety Switch Standard
Neutral Safety Switch Standard
CAPACITY (Ltrs.) (+/-5%)
Fuel Tank (Ltr.) 26
TURNING RADIUS
Without Brakes (m) 3.1
TYRE
Front 6.00 – 12
Rear 8.30 – 20
DIMENSION & WEIGHT (+/-5%)
Weight (kg) 1020
Wheel Base (mm) 1560
Total Length (mm) 2760
Total Width (mm) 1075
Height (mm) Up to ROPS 1955
Min. Ground Clearance (mm) 240
Front Track (mm) 885
Rear Track (mm) 835
OTHERS
Fuel Indicator Gauge Standard
Front Tow Hook Standard
Front & Rear Weights with std. Ballast Front weights – 15 x 2
Trailer Hitch 1. Swinging Bar (Optional)
2. Clevis Hitch (Standard)
Roll Over Protection Standard
Canopy Standard
OPTIONAL FEATURES
Tyres TURF

Front Tyre: 23×8.50 – 12
Rear Tyre: 33×15.50 – 16.5
INDUSTRIAL
Front Tyre: 23×8.50 – 12
Rear Tyre: 33×15.50 – 16.5
AGRI
Front Tyre: 6×12 | Rear Tyre: 8.3×20
Front Tyre: 7×14 | Rear Tyre: 8.3×24
RADIAL
Front Tyre: 6.5/80-12 | Rear Tyre: 280/70 R18
GALAXY PRO
Front Tyre: 220/55 R12 | Rear Tyre: 280/70 R16

Front End Loader Optional
