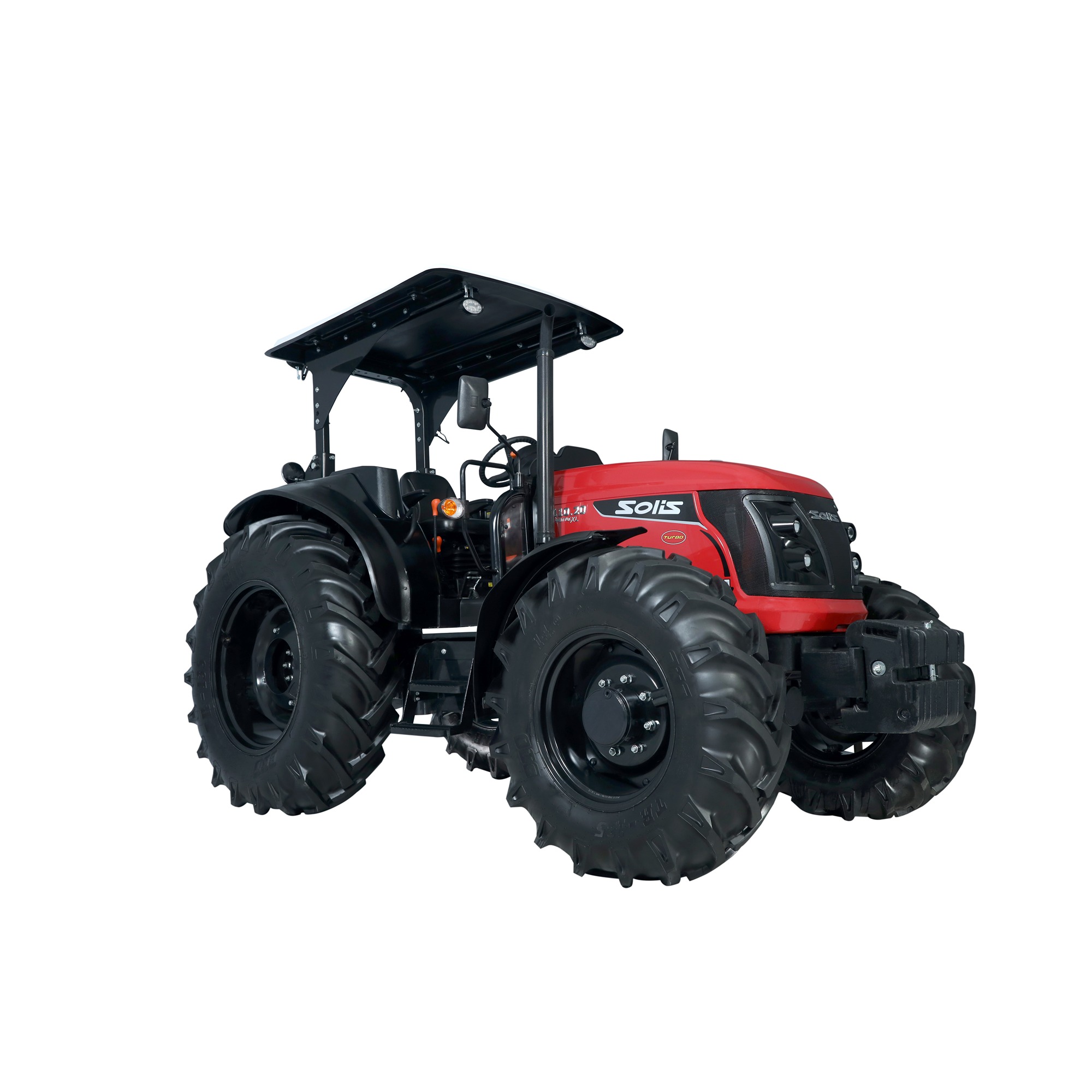

Solis 110
Solis
110
Power up Your Productivity with Solis
The Power Of Japanese Technology
With its advanced technology and powerful engine, the Solis S110 can easily handle heavy-duty tasks. It also features a comfortable and ergonomic cabin with excellent visibility and easy access to all controls, making it a popular choice for professional farmers.

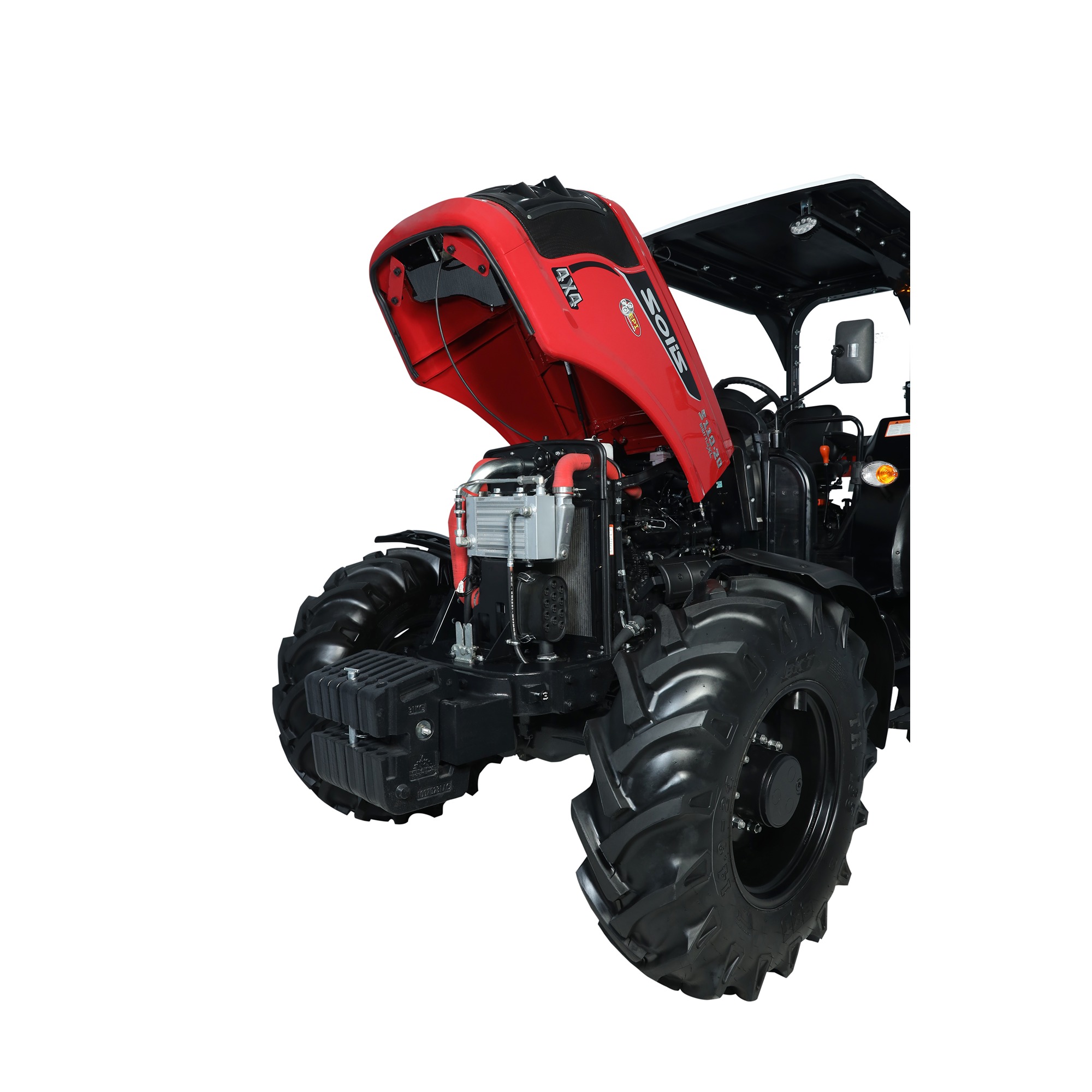

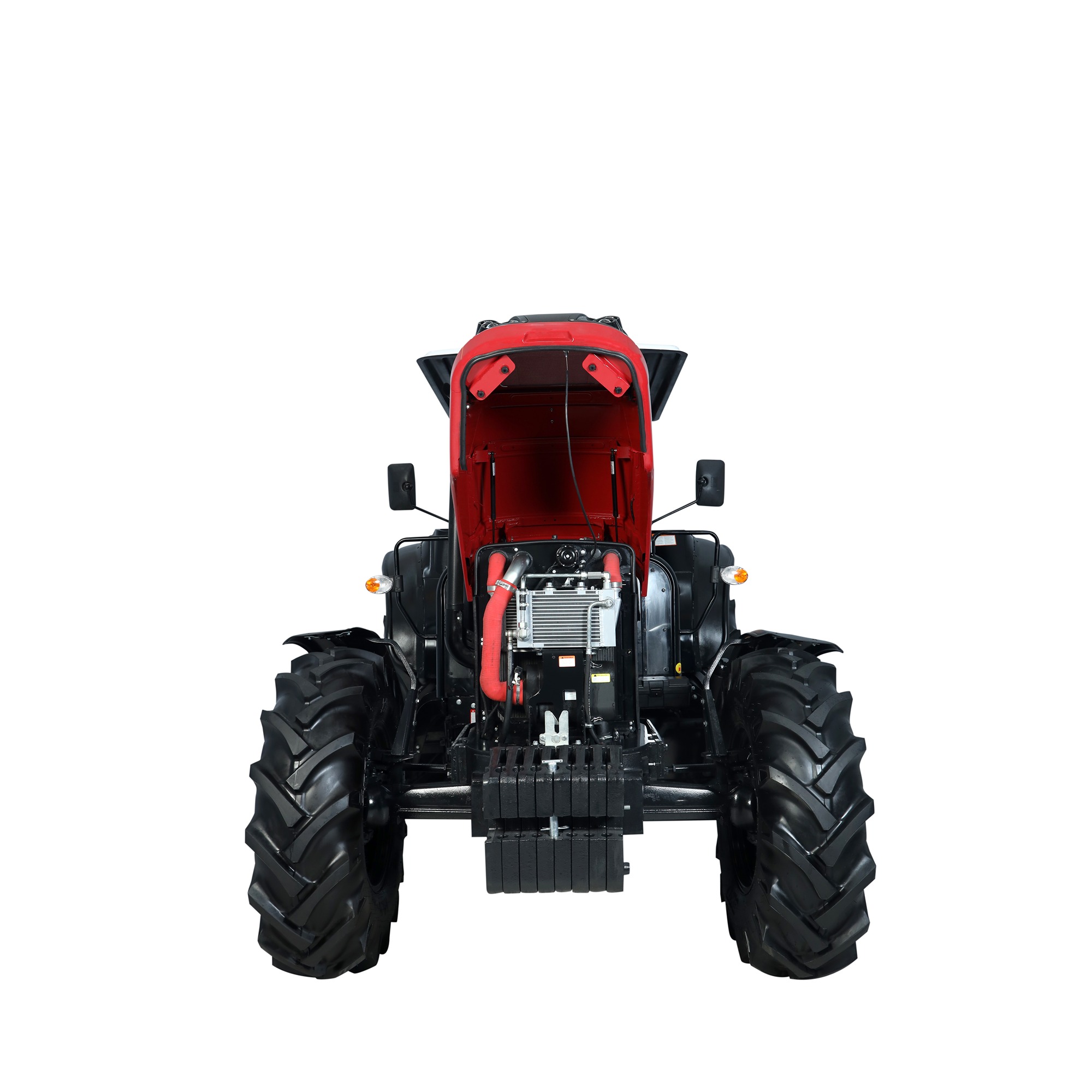

E3 ENGINE HAVING XTRA POWER

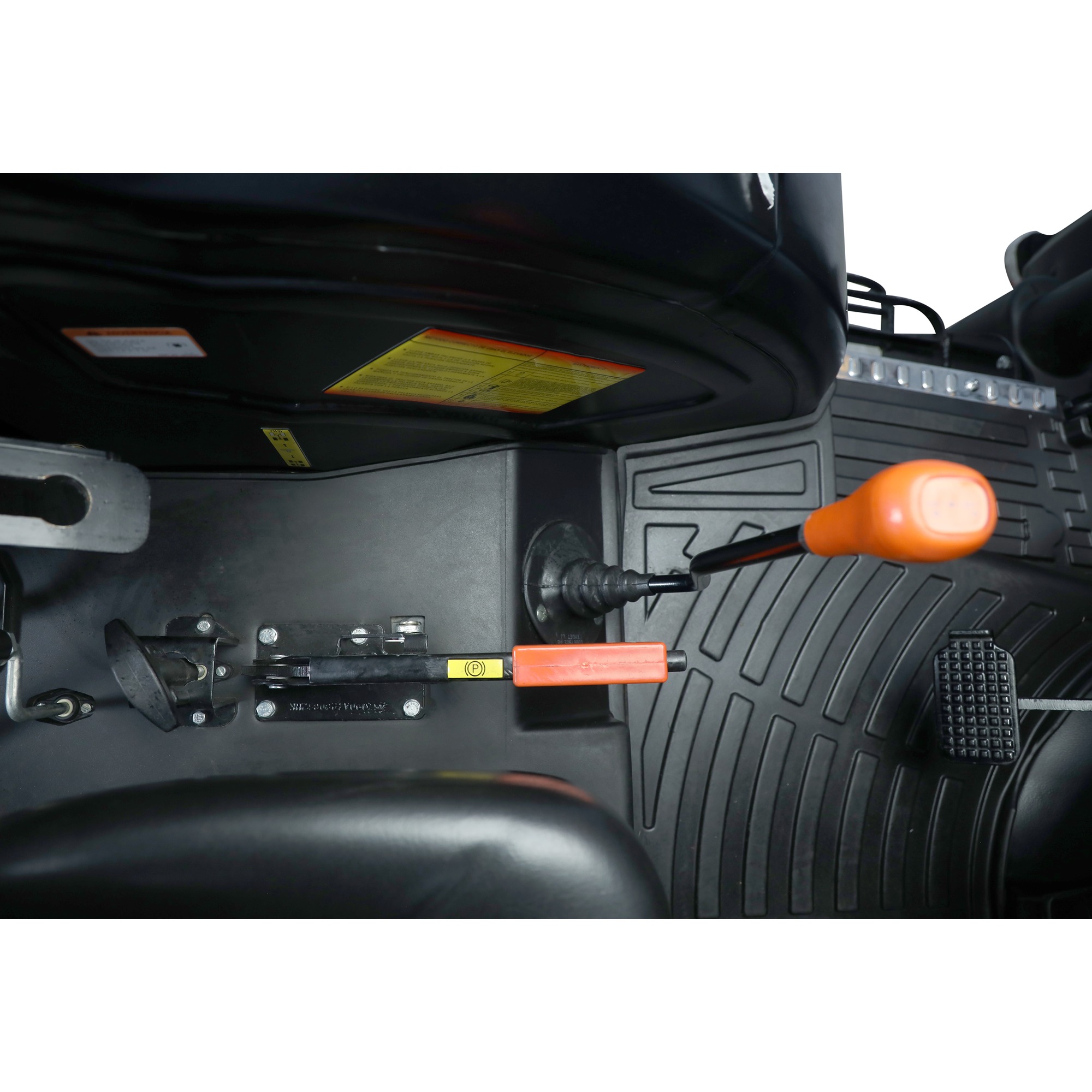

EASY SUPER SYNCHRO 8F+2R GEARBOX
SYNCHROMESH TRANSMISSION
SLEEK & STYLISH BONNET
Technical Specifications

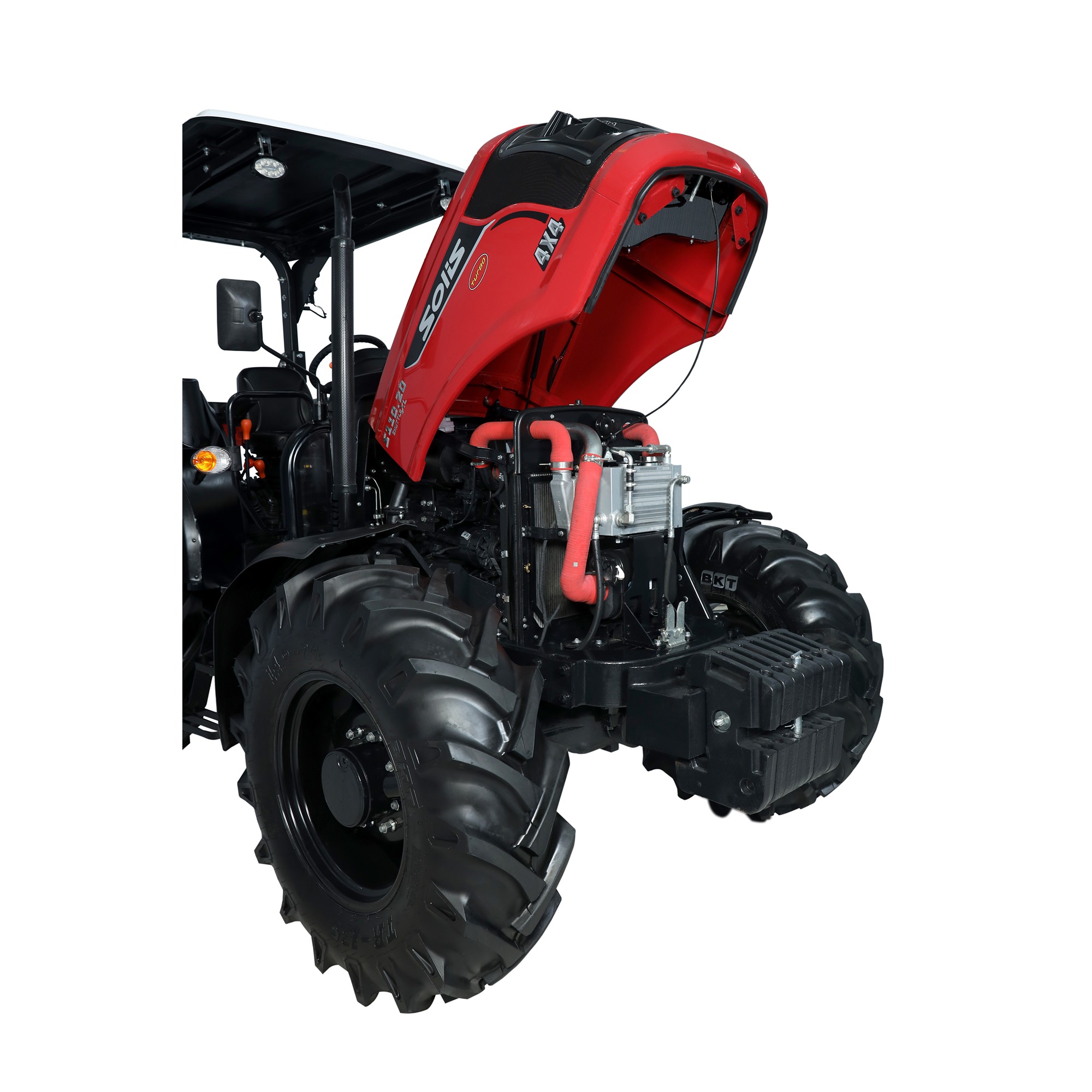

| ENGINE | |
| HP Category | 110 HP |
| No. of Cylinders | 4 |
| Displacement cc | 4087 |
| Aspiration | Turbocharged with Intercooler |
| Bore/Stroke (mm) | 105/118 |
| Rated RPM | 2200 |
| Air Cleaner | Dry Air Cleaner |
| Max Torque | 430@1300 |
| TRANSMISSION | |
| Drive | 4WD |
| Clutch | Double Clutch |
| Gearbox | 12F + 12R |
| Transmission | Synchromesh Shuttle Transmission |
| SPEED (FORWARD) | |
| Min Speed (km/h) | 1.67 |
| Max Speed (km/h) | 34.86 |

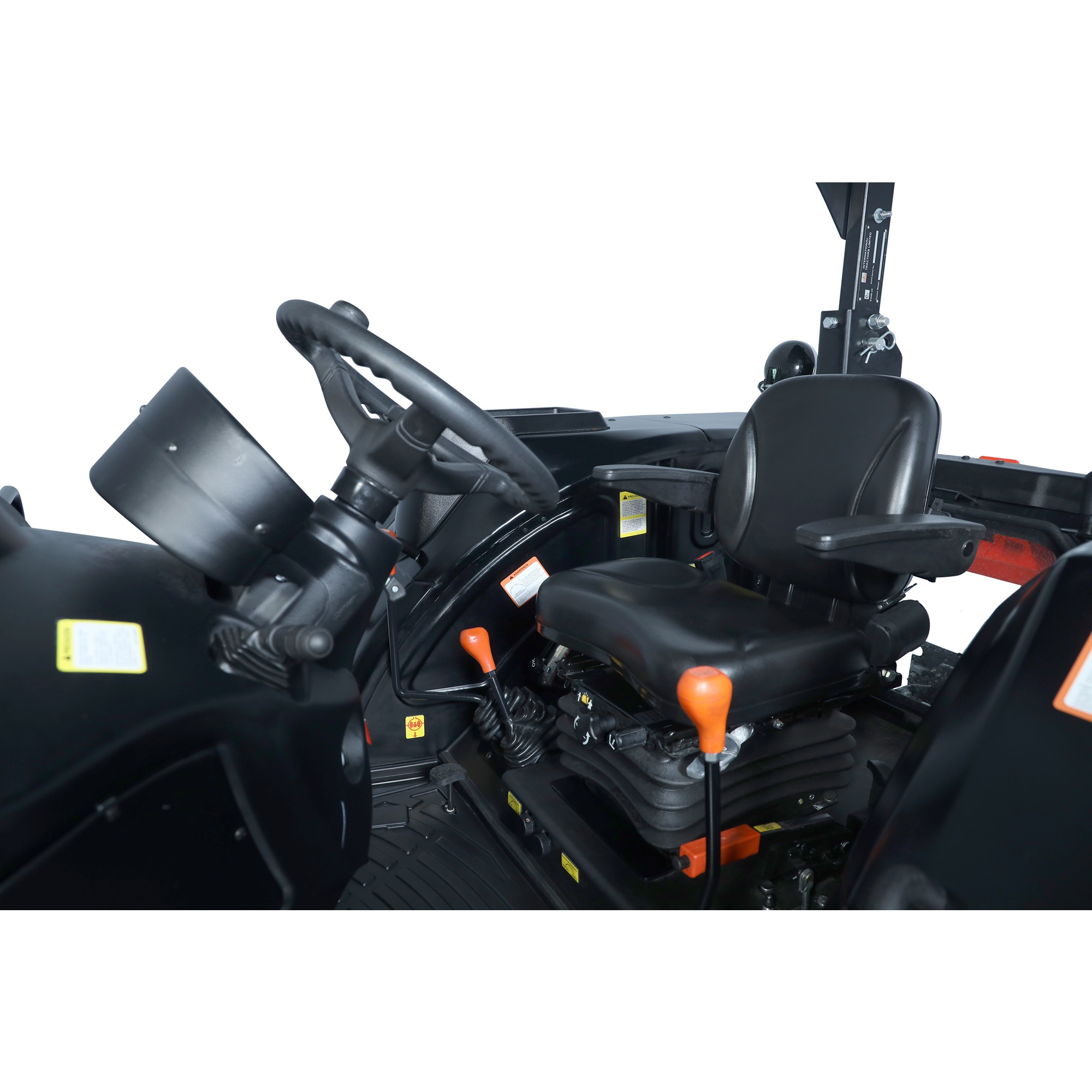

| Driver Seat | Mechanical Suspension |
| BRAKE | |

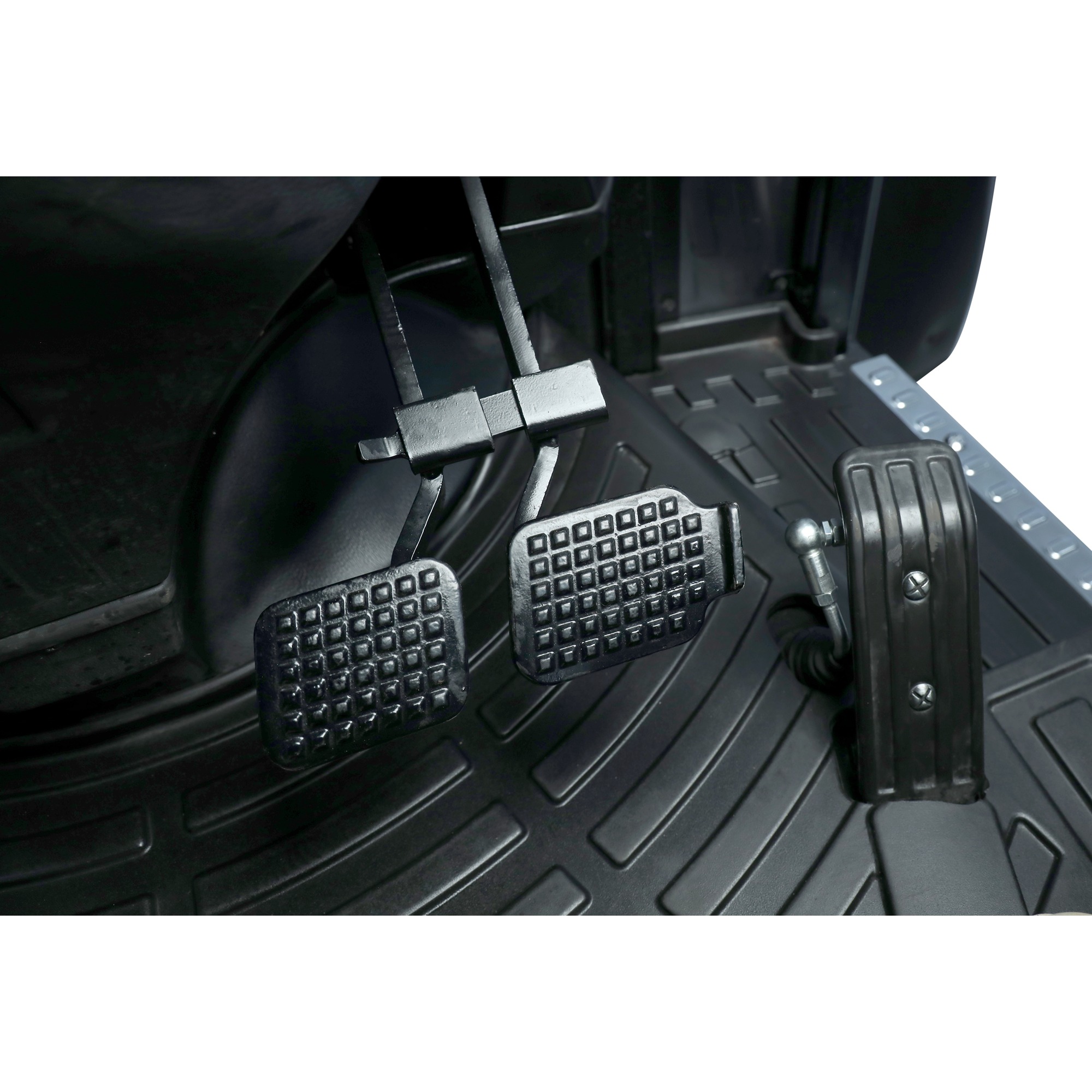

| Brakes | Wet Disc Brakes |
| Type of Actuation | Hydraulic Assisted Brakes |
| Hand Brak | Mechanical |
| DIFFERENTIAL LOCK | |
| Differential Lock | Mechanical (Foot Operated) |
| PTO | |

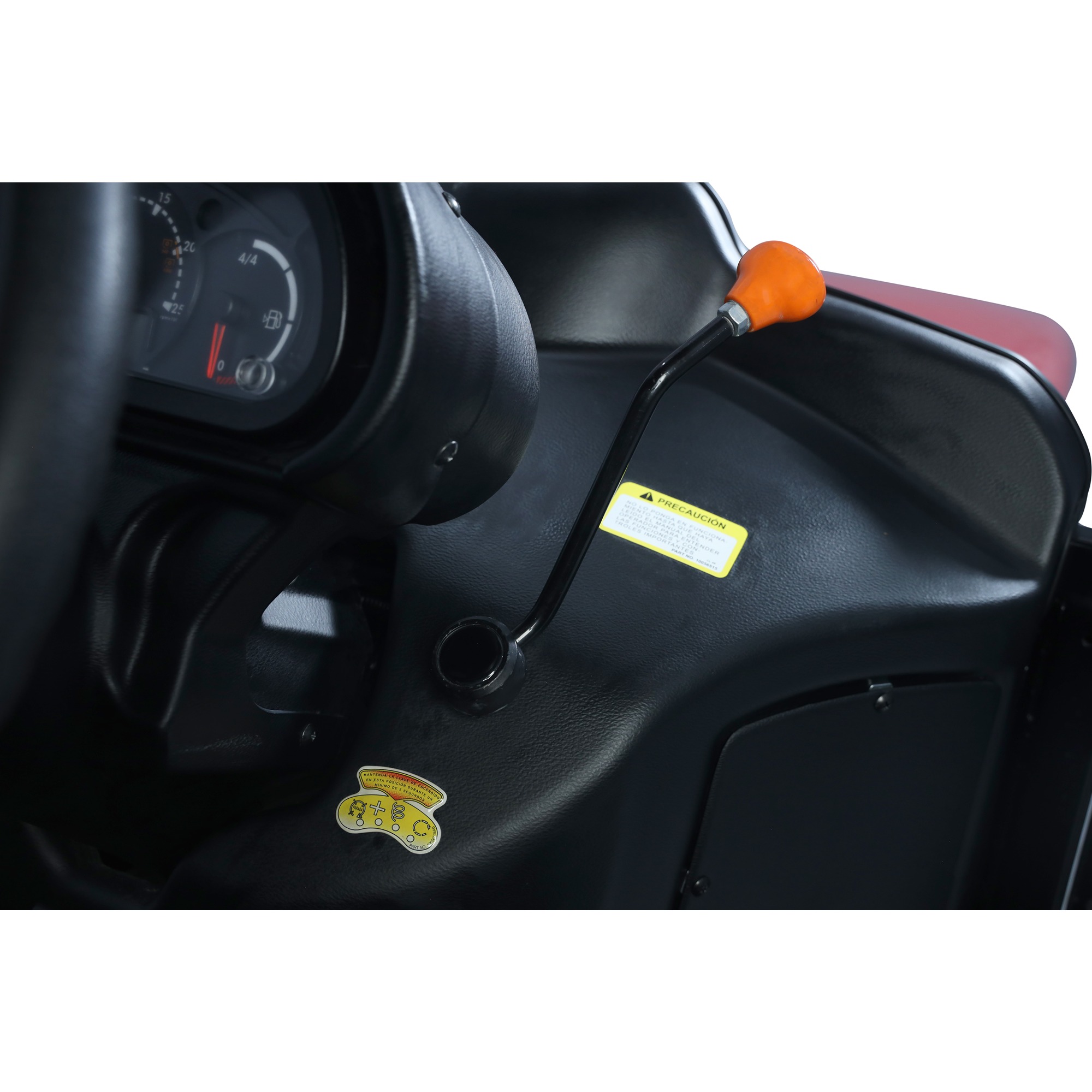

| PTO (RPM) | 540/540E 540/100(Optional) |
| PTO (Actuation) | Mechanical |
| STEERING | |
| Steering | Power |
| ELECTRICAL | |
| Battery | 12V, 110Ah |
| Alternator | 12V, 90Amp |
| Seven Pin Trailer Socket | Standard |
| HYDRAULICS | |
| Position Control | Standard |
| Automatic Draft Control | Standard |

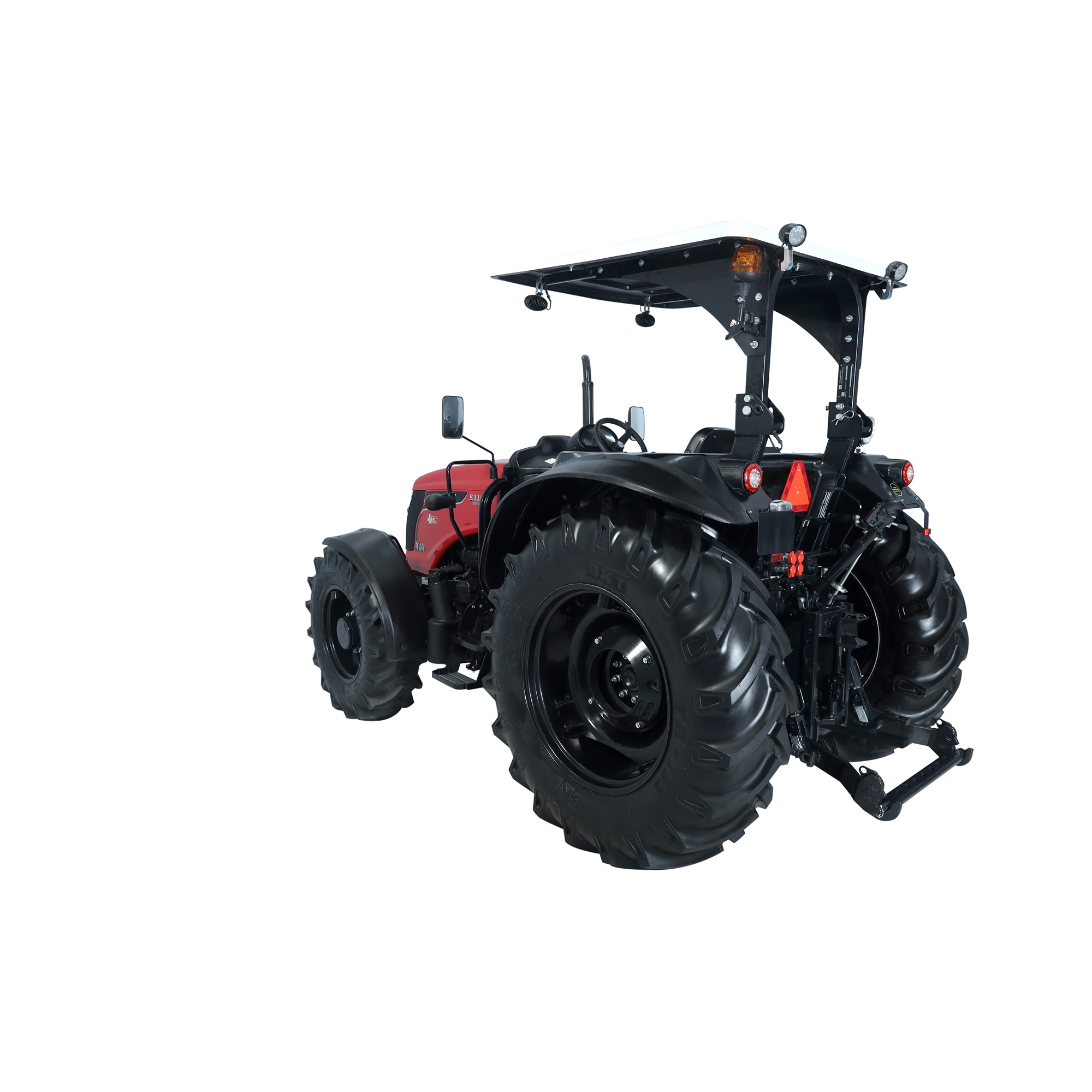

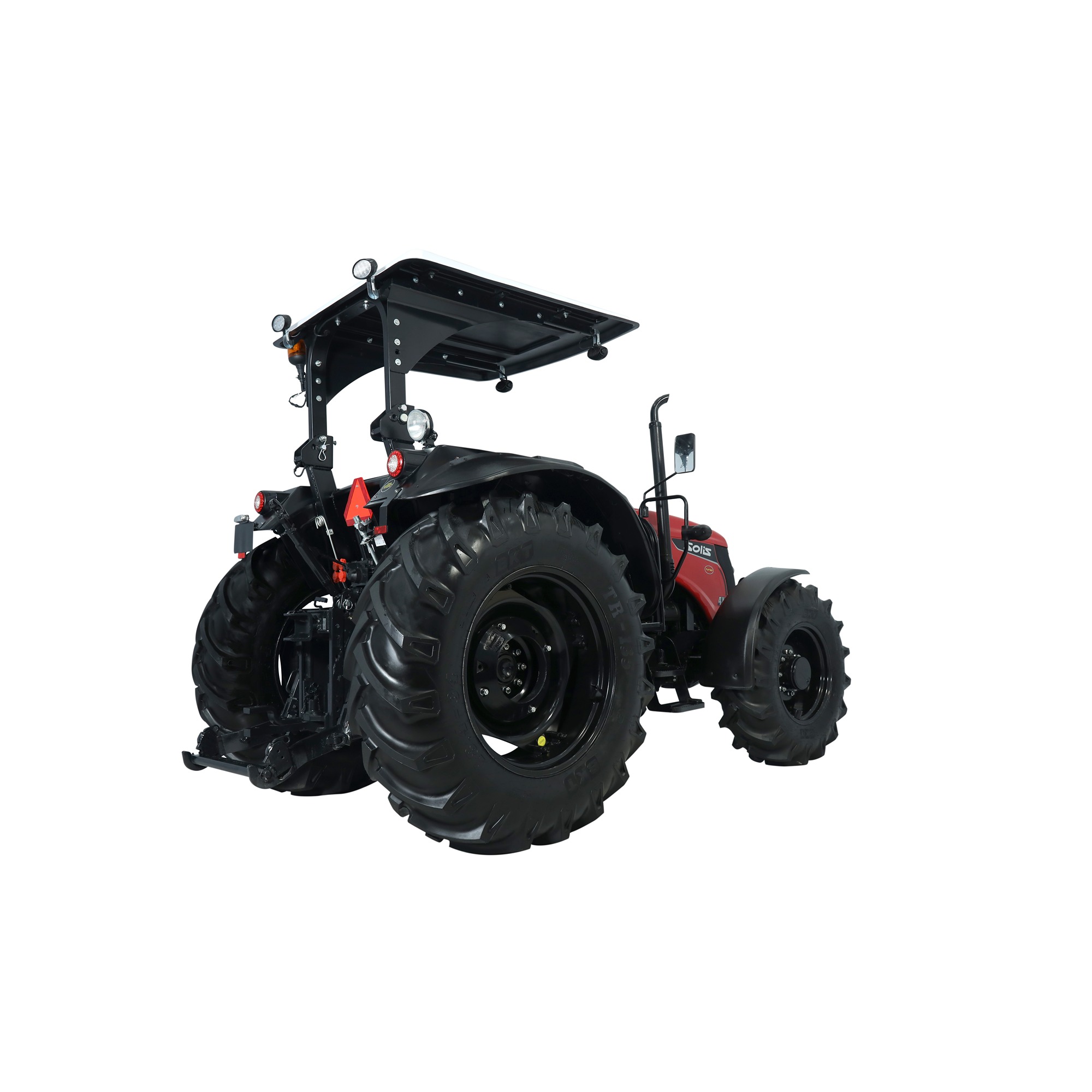

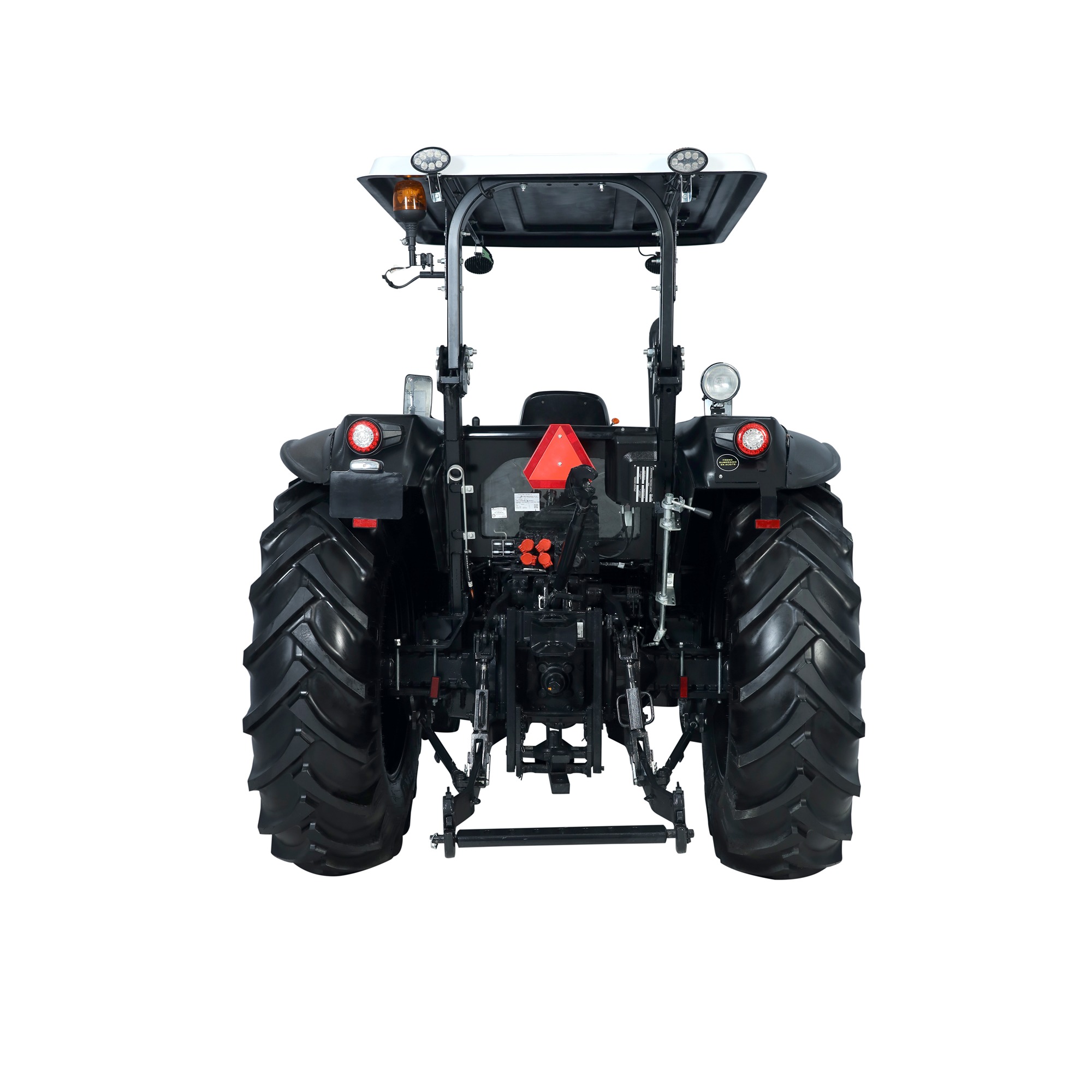

| 3 Point Linkage | Standard |
| Lifting Capacity (Kg) | 3500 |

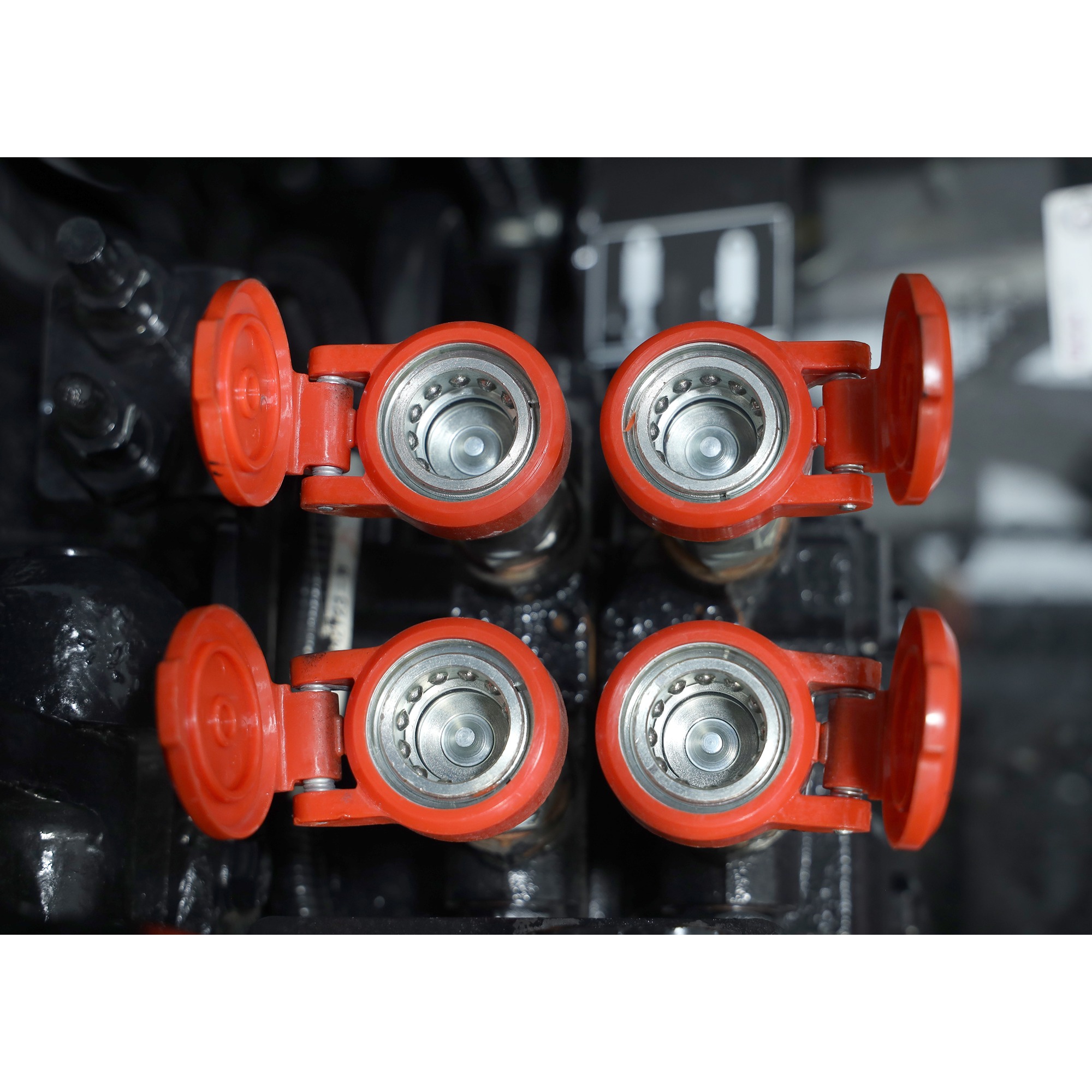

| Auxiliary Hydraulic Circuit | 2DA |
| SAFETY SWITCH | |
| Neutral Safety Switch | Standard |
| P.T.O Safety Switch | Standard |
| Clutch Safety Switch | Standard |
| CAPACITY (LTRS)(+/-5%) APPROX | |
| Fuel Tank (Ltr.) | 117 |
| TURNING RADIUS IN (m | |
| Without Brakes | 6.2 |
| TYRE | |
| Tyres | Front: 380/85R24 Rear: 460/85R34 |
| DIMENSION & WEIGHT (+/-5%) | |
| Gross Weight (Kg) | 4085 |
| Wheel Base (mm) | 2376 |
| Total Length (mm) | 4311 |
| Total Width (mm) | 2255 |
| Height (mm) upto ROPS | 2690 |
| Ground Clearance (mm) min | 455 |
| Front Track, (mm), min.-max. | 1762 |
| Rear Track, (mm), min.-max | 1724 |
| OTHERS | |
| Fuel Indicator Gauge | Standard |

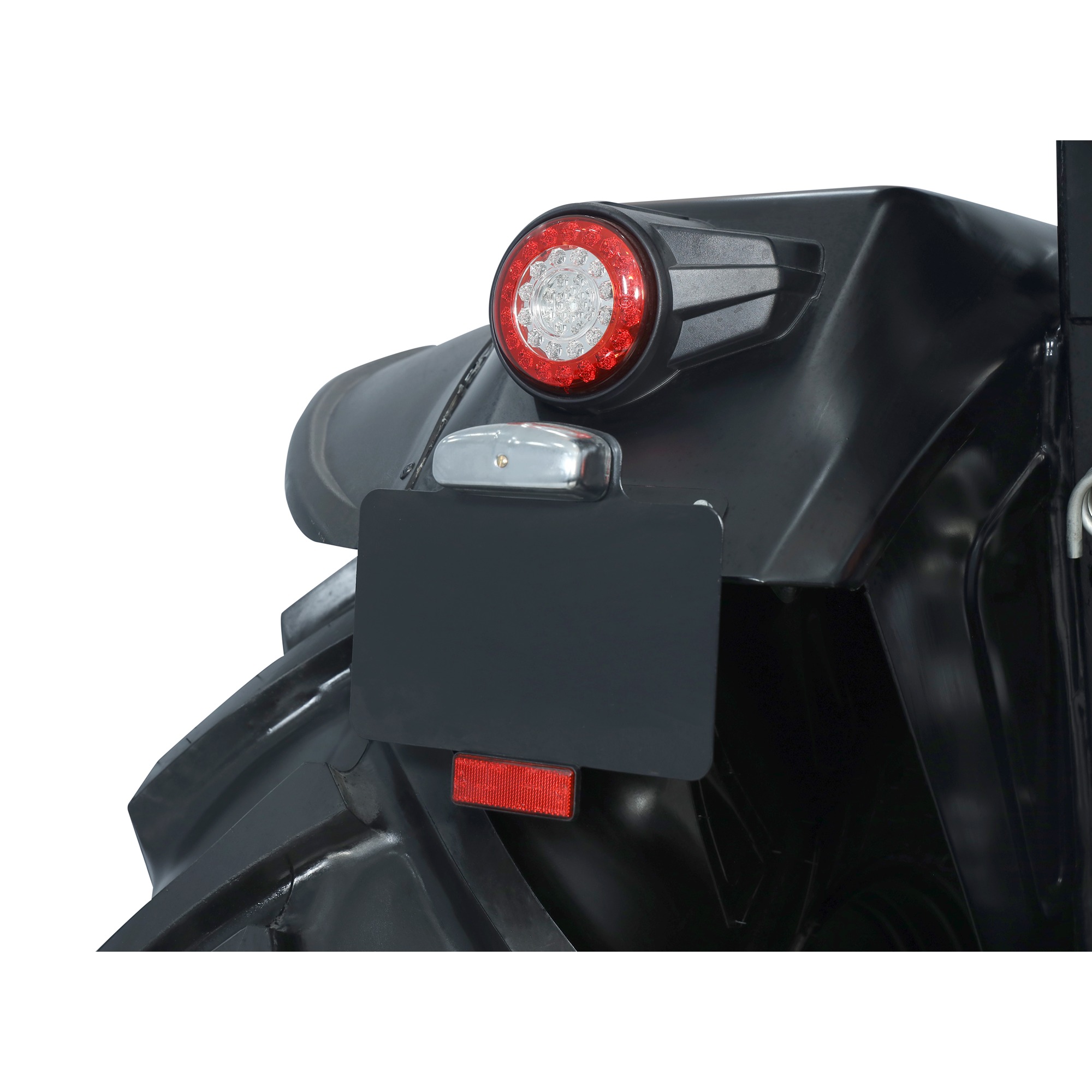

| Registration Plate with Light | Standard |
| Front Tow Hook | Standard |

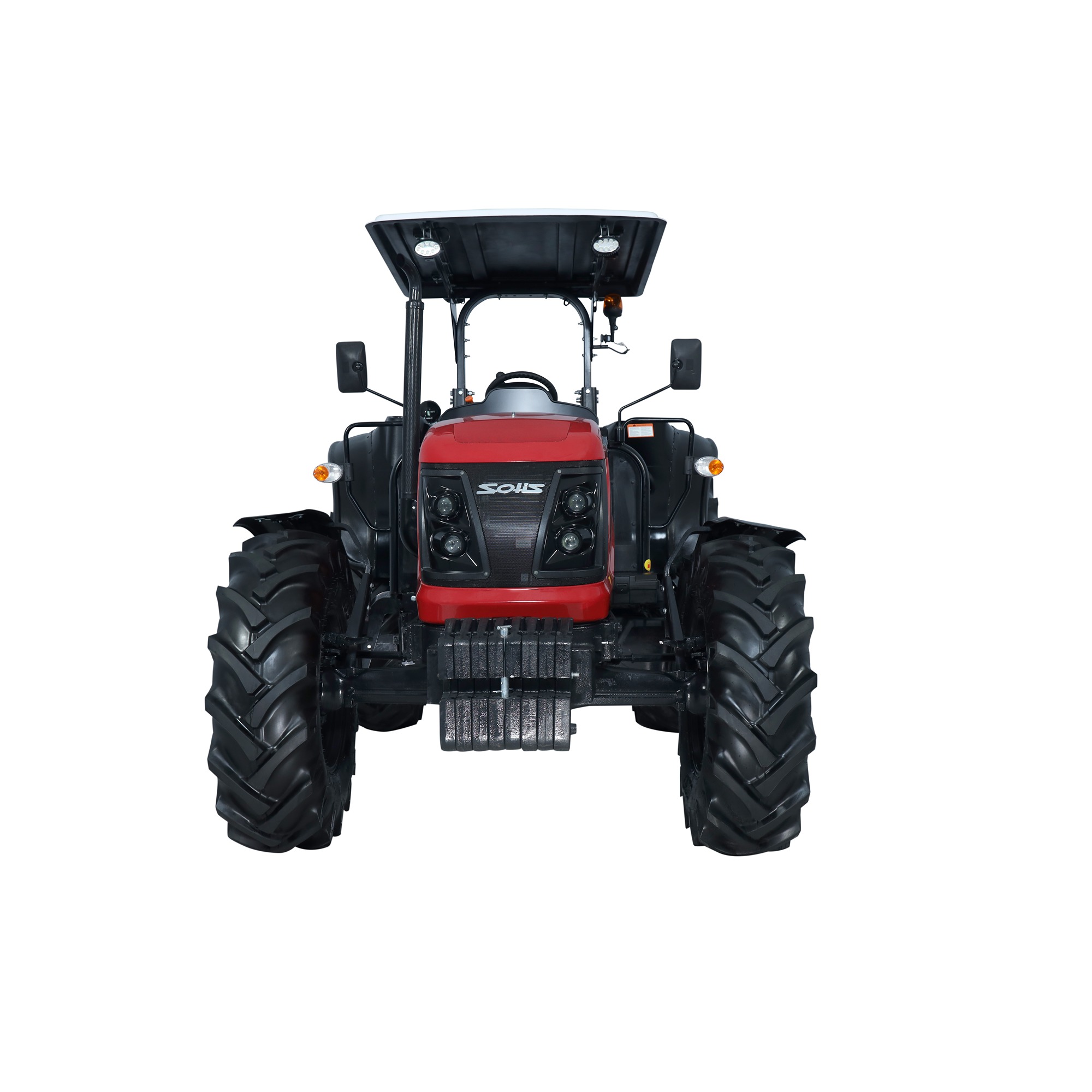

| Front & Rear Weights | 72 Kg Base Weight+ 31*8 Rear – 40×1(Each Wheel) |
| Drawbar | Standard |

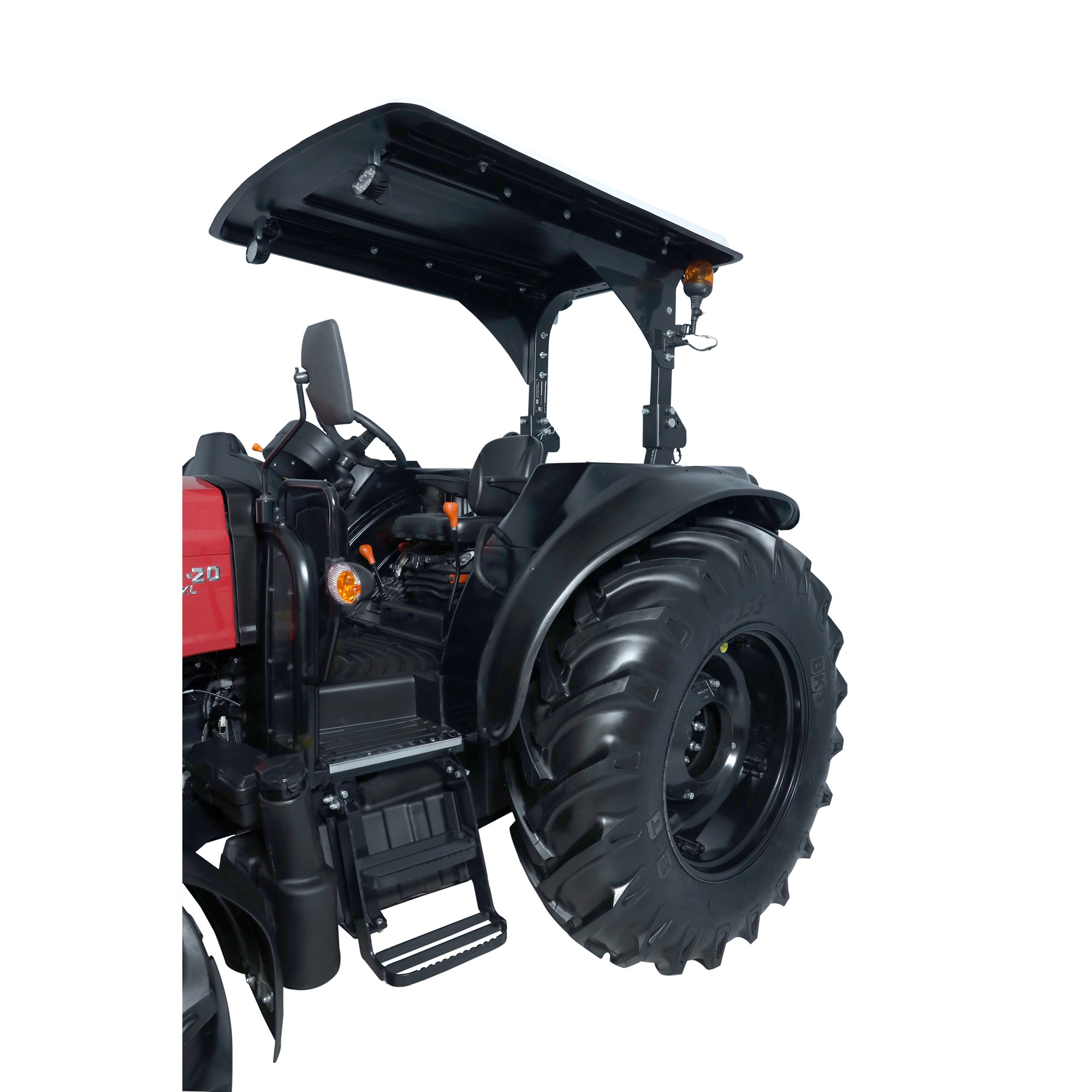

| ROPS | Standard |
| Canopy | Optional |
| Cabin | Optional |
| OPTIONAL FEATURES | |
| Front Mudgaurd | Standard |
| Trailer Brake | HTB |
| Additional Weight Optional | |
| Front | 2×31 Kg |
| Rear | 40×1 Each Wheel | 40×2 Each Wheel |
